Question about saferoad address of ADAU1466

Hi all

I have a question about saferoad address of ADAU1466

The development environment uses adau1466 / SigmaStudio 4.1.

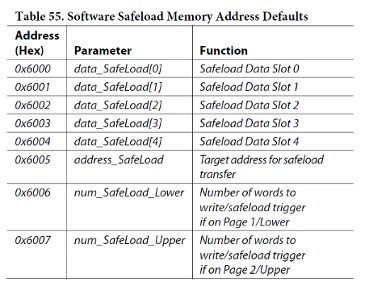

1. In table 55 of the datasheet, I found the information about safeload address.

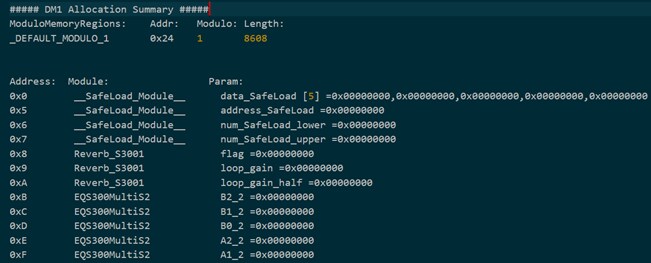

2. The compile_output.log file from sigmastudio (ver 4.1).

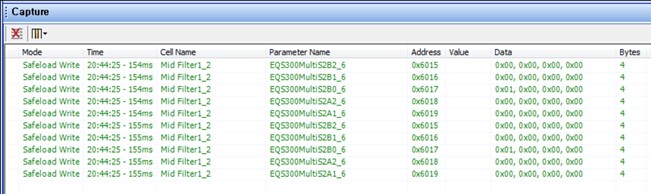

3. SigmaStudio Capture window

Question

1. Which Safeload addresses should use in my environment?

2. The address_SafeLoad entry in Safeload address + 5
#define MOD_MIDFILTER1_ALG0_STAGE2_B2_ADDR 91
If I want to set the value above, which value should you enter as either 0x0000005b or 0x5b000000?

3. What does num_Safeload_Lower / num_Safeload_Upper at safeload address + 6,7 judge Lower / Upper based on?
Which of the following is MOD_MIDFILTER1_ALGO_STAGE2_B2_ADDR Lower or Upper?

I attached SigmaStudio project file and compiler_output.log.

Please advise the above question.

Thank you
