Nx1 Mixer (Linear)

There are three versions of 'NX1 Mixer' algorithm.

1. 2×1 (No Slew)
2. 3×1 (HW Signals)
3. 4×1 (No Slew)

The 2×1 Mixer has 2 input channels and 1 output channel. 2×1 mixers mixes two input channels to one output channel. Each input mix level can be independently adjusted. There are two combo boxes for setting the gain, one combo box for one input pin. To set the gain, click on the combo box and enter the value in the range of -128.0 to 127.999.

Growth is supported to maximum of 16 output channels. Add Algorithm is not supported.

Here,

• Green - Algorithm Name
• Red - Instance Number (Changes for each instance)
• Blue - Parameter Name

ADAU145x

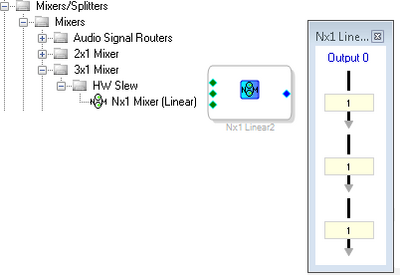

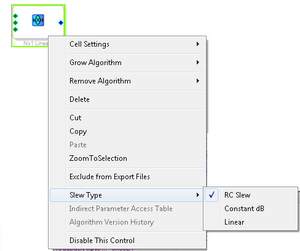

The 3×1 Mixer has 3 input channels and 1 output channel. 3×1 mixers,mixes three input channels to one output channel. Each input mix level can be independently adjusted. There are three combo boxes for setting the gain, one combo box for one input pin. To set the gain, click on the combo box and enter the value in the range of -128.0 to 127.999. The gain values are slewed to reduce audio clicks. Slewing options can be selected from the context menu.

Growth is supported to maximum of 8 output channels. Add Algorithm is not supported.

Here,

• Green - Algorithm Name
• Red - Instance Number (Changes for each instance)
• Blue - Parameter Name

ADAU145x

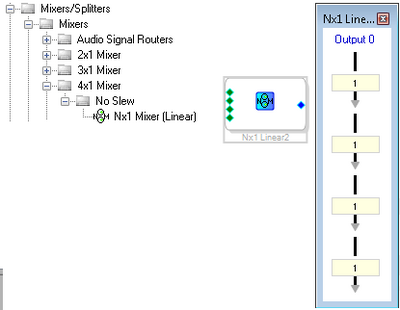

The 4×1 Mixer has 4 input channels and 1 output channel. 4×1 mixers mixes four input channels to one output channel. Each input mix level can be independently adjusted. There are four combo boxes for setting the gain, one combo box for each input pin. To set the gain, click on the combo box and enter the value in the range of -128.0 to 127.999.

Grow Algorithm is supported for a maximum of 8 output channels. Add Algorithm is not supported.

Here,

• Green - Algorithm Name
• Red - Instance Number (Changes for each instance)
• Blue - Parameter Name

ADAU145x
