Binary to Decimal

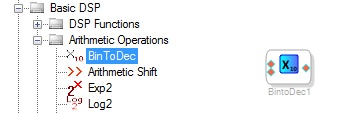

This module can be used to considers input signals are binary and gives a decimal output value.
Input Pins
| Name | Format [int/dec] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Bit 0 | int- control | Bit 0 of input |
| Pin 1: Bit 1 | int- control | Bit 1 of input. |
Output Pins
| Name | Format [int/dec] - [control/audio] | Function Description |
|---|---|---|
| Pin 0: Output | int - control | Decimal value as integer (32.0) |
Grow Algorithm
The module supports growth of input Pins.
Example Usage
This module can be used with GPIOs to convert the multiple GPIO's value into a single integer value.
The table below shows the input and output value for the BinToDec module.
| GPIO_0 | GPIO_1 | BinToDec Output (32.0) | Lookup Table Output (8.24) |
|---|---|---|---|
| 0 | 0 | 0 | 0 db |
| 1 | 0 | 1 | 1 db |
| 0 | 1 | 2 | 2 db |
| 1 | 1 | 3 | 3 db |
The output of BinToDec is used as an index for LookUp table. The output of the lookup table can be multiplied with the audio signal as the gain.

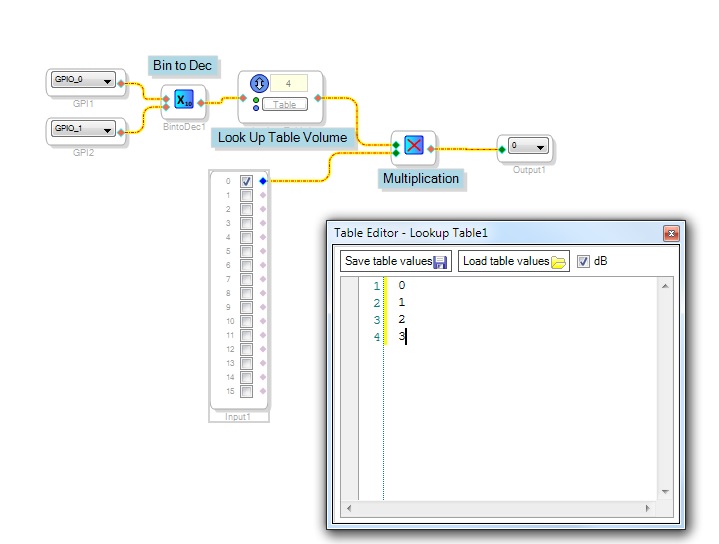

Using this schematic signal's volume can be changed through GPIO.
Supported ICs
- ADAU145x
