Signal Add

There are three version of 'Signal Add' algorithm.

1. Signal Add (Real Signals)
2. 2 Channel Adder (Real Signals)
3. Signal Add (Complex Signals)

The Signal Adder block adds inputs together. No other modification of the signal is done.

Care must be taken to avoid clipping. If automatic gain reduction is needed to avoid clipping, use the Signal Merger block.

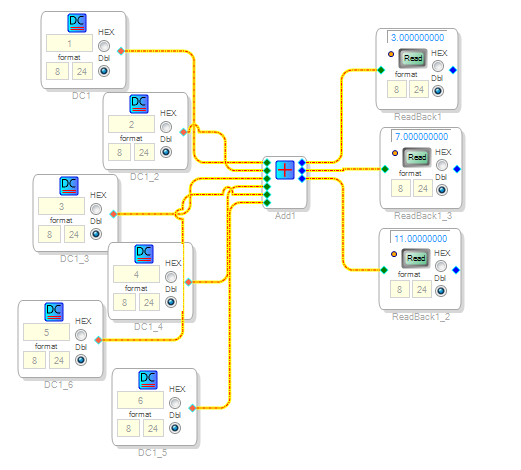

This algorithm adds the 2 signal and produces an real signal. When the algorithm is grown it takes multiple pairs of input signal and adds each pair to produce an output signal.

Module can be grown 16 times. For each growth input is grown by 2 and output by 1.

ADAU145x

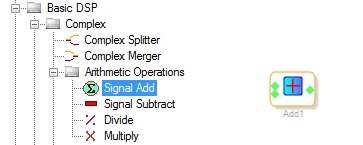

This algorithm adds the complex signals. (All real parts are summed together and all imaginary parts are summed together)This is a block based module.

input pins can be grown up to 8 channels.

ADAU145x (Block Schematic only)

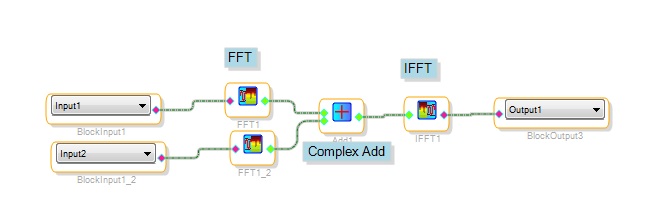

This can be used to add two signals FFT's result as shown below.
