Crossover

The Crossover block includes 2-way and 3-way crossover filters, typically used in loudspeaker systems to split the audio signal into separate frequency bands.

• This filter provides:
• 2-way or 3-way crossover filtering.
• Graphical design of crossover response.
• Selectable crossover types: Linkwitz-Riley, Butterworth, Bessel.
• Selectable filter orders: 2nd, 3rd, 4th, 6th, and 8th.

This block is implemented using cascaded filters. See General 2nd-Order Filters (in Algorithm Information) for details about the biquad filter design techniques used in this block.

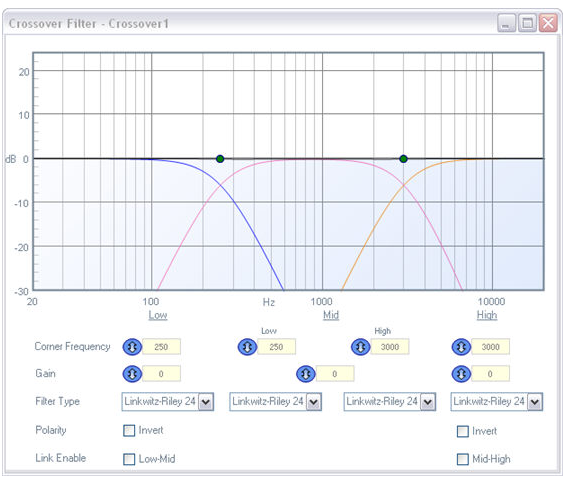

Filter Control Window:

To open the filter's Control Window, Click the icon button:
