ADAU1977 Configuration

SigmaDSP & SigmaStudio Kwan12 Feb 28, 2019 00:00 2 replies Original on forum ↗

ICs: ADAU1977

Kwan12 Question

Feb 28, 2019 00:00

Hi,

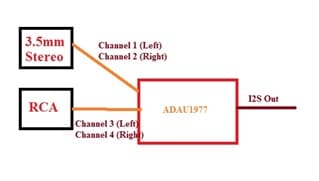

I would like to apply the ADAU1977 for multi analog input as shown in the picture below

May I know is this possible? And, what about the I2S output? Can I select the output from which two analog channels?

And about the software GUI to configure the ADAU1977, I tested the software on Windows 10 64-bits version, it's not working and the program cannot start at all. Then I saw a discussion mentioned about the possibility of using Sigmastudio, but I can't find any ADAU1977 IC inside the selection.

Any suggestion?

Sincerely,

Kwan

Report

DaveThib Reply

Feb 28, 2019 00:00

Hello Kwan,

The output of the four ADCs are mapped to serial port slots using two registers. They are called Channel Mapping for Output Serial Ports Register. They are addresses 0x07 and 0x08. So you can switch the first serial port output to be any of the four ADCs.

Regarding the control software. We recently produced a fix for Windows 10 and have just tested it. It will be up on the product page soon but I am not sure exactly when. There is no DLL for SigmaStudio.

Dave T

Report

Kwan12 Reply

Mar 1, 2019 00:00

Hi Dave T,

May I know when the new part available? I just replied to the email.

And, regarding the ADAU1977, is that mean I need to find a Windows 7 machine to configure it into self-boot mode right now?

Sincerely,

Kwan
