How to run a SC589 Project with ADZS-SC584-EZLITE

Processors & DSP DSP_MAXC Mar 19, 2019 00:00 1 replies Original on forum ↗

DSP_MAXC Question

Mar 19, 2019 00:00

Hi,

I trying to run the Playback (SHARC) example for the SC-589 Processor with ADZS-SC584-EZLITE. I can build the Project but I can not load the Executables into the Processor-Cores, because the Executables are made for SC-589. I´m not sure how to change this.

In Properties-> C/C++ Build-> Settings I can see the -proc switch in Combination with the SC-589 Processor.

Is there a way to change this?

adc

sharc

crosscore

cross core

adsp-sc58x

dac

Report

ADIApproved Reply

Mar 21, 2019 00:00

Hi ,

You can just change the project settings from ADSP-SC589 to ADSP-SC584 and rebuild the project again. For doing this, you can navigate as below.

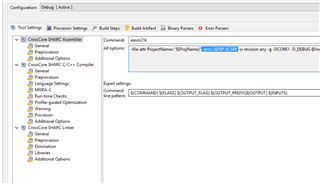

Project->Properties->C/C++build->Settings->Processor Settings. Please see the below image for your reference.

If this does not work then create a new project for ADSP-SC584 and copy all the source files from the existing project and try executing it.

Hope this helps.

Regards,
Lalitha S
