ADAU1701 MP2 MP3 push button as volume control

Hello Tomdy,

In the folder where your project resides you will see a folder that SigmaStudio creates called IC 1_yourfilename...

In that folder you will see another folder called "net_listout2"

In that folder you will find a text file called "Compiler_Output.txt".

Can you attach this file? You might have to Zip it up if the insert file command in the forum gives you an error.

It would also be great to zip up and attach your program.

There are pushbutton GPIO capability but I have no idea how you are trying to do it and if you are running into resource issues.

I can send over an example if needed but let's study your issue first.

Dave T

Hi Dave

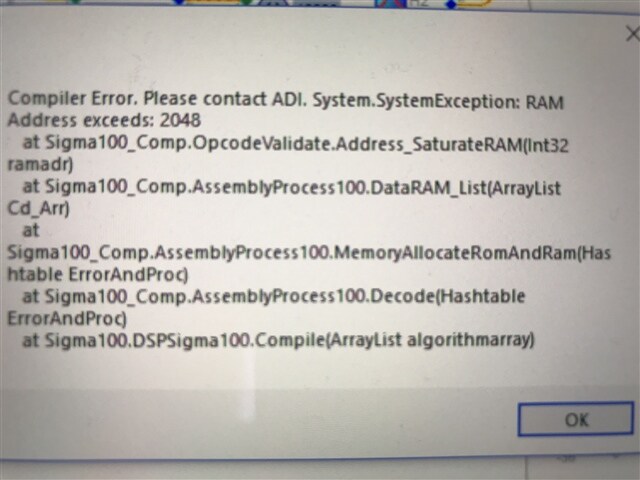

Here is the file. I think it just confirmed usage of the RAM is exceed.

Fullscreen
compiler_output.txt
Download

Analog Devices Graphical Compiler Tool for Sigma DSP build date = 2008

Done Reading Nodelist ...

Done reading file,

Done Reading Parameter list ...

################## Summary ########################
(Note: Estimates are based on a 48 kHz sample rate)

Number of instructions used (out of a possible 1024 ) = 331

Data RAM used (out of a possible 2048 ) = 2047

Parameter RAM used (out of a possible 1024 ) = 78

Files written:

program_data.dat - load file for downloading code using ADI loader

hex_program_data.dat - load file for downloading code using microcontroller

spi_params.dat - file of parameter values for each instance, used by gen_spi program to make download file

spi_map.dat - Parameter RAM locations for each schematic instance

trap.dat - lists the values to enter in the trap registers to output a signal to the data-capture output pin.

Hello Tomdy,

It looks like you did but that is a lousy error message. It should just say that you exceeded it and not crash. I wonder if the project is somehow corrupted?

For as small as your program is instruction-wise, you are using a lot of memory. Are you using Delays?

There may be ways to make your program more efficient. We would have to take a look at it.

Dave T

Thanks Dave I will double check the program side.
