ADSP-SC584 uboot fails to run

Processors & DSP Kishore_D Aug 7, 2019 00:00 2 replies Original on forum ↗

Kishore_D Question

Aug 7, 2019 00:00

Hi ,

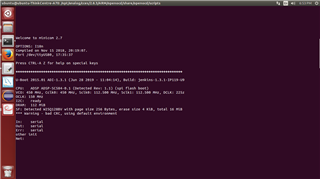

We are trying to bring up the Linux on ADSP-sc584 EZ-Kit , our board BOM version is 2.4(EZ-Kit version 1.4) . we are following the steps in document linux_add_in_user_guide_1.3.1.pdf the section 2.2.3 and once we provide the gdb command load u-boot-sc584-ezkit and then command C .it stops at "Net" in minicom, please see below screen shot . Any quick help will be appreciated.

Report

Gregchen Reply

Aug 8, 2019 00:00

Hi,

This issue is related with the new Ethernet phy on ADSP-SC584 EZKIT board with BOM 2.4, which is not supported by the Linux Add-in 1.3.1 now, we'll give one documentation on how to get it working with Linux Add-in 1.3.1 soon, thanks a lot.

Report

Gregchen Reply

Aug 9, 2019 00:00

Hi Kishore_D,

Please find the documentation from https://ez.analog.com/dsp/software-and-development-tools/linux-for-adsp-sc5xx-processors/w/documents/15008/support-for-adsp-sc584-ez-kit-bom-revision-2-4-using-linux-add-in-1-3-1.

Please let me know if you have any comments, thanks a lot.

Report
