SVarghaei385 Question

Feb 12, 2020 00:00

Hi,

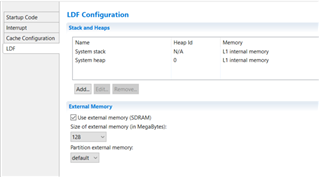

I am working with an example code "BF707_SPI_Flash_access_codes". From its system.svc -> Startup/LDF, there is a option which the external memory can be set

But in my case, I am using BF706, and from system.svc -> startup, there is no option for setting external memory.

Anyone can explain to me, what I have to do instead for?

flash

spi

ldf

cross core

bf706

dsp&processors

blackfin

Report

ADIApproved Reply

Feb 14, 2020 00:00

Hi Sva,

Are you intending to use DDR? If so, please note that ADSP-BF706 does not have support for DDR2/LPDDR. Please refer datasheet(Pg. No.: 3/114) for more information. The datasheet can be found in the below link.
www.analog.com/.../adsp-bf700_bf701_bf702_bf703_bf704_bf705_bf706_bf707.pdf

Regards,
Anand Selvaraj.

Report

SVarghaei385 Reply

Feb 17, 2020 00:00

I thought, I need SDRAM for memory mapped flash reading.

Report

ADIApproved Reply

Feb 21, 2020 00:00

Hi Sva,

No, SDRAM is not mandatory for accessing flash.

Regards,
Anand Selvaraj.
