ADAU1701

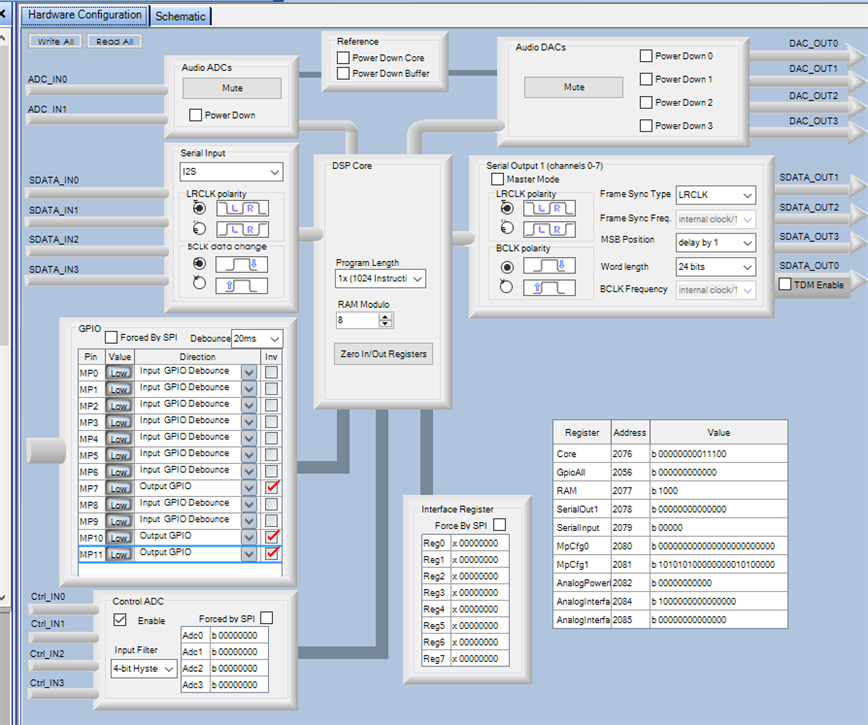

Hi everyone, can you help me for the project with ADAU1701? I want to use some General Purpose Output for control three LED on then off in order, what should I do? Thank you all in advance.
Edit Notes
Added Category, text to description and tags
[edited by: GenevaCooper at 8:37 PM (GMT -5) on 5 Jan 2023]
Audio Signal Processors
hardware
SigmaDSP Audio Processors
adau1701
Can someone help me?
Hello guitarnoname,

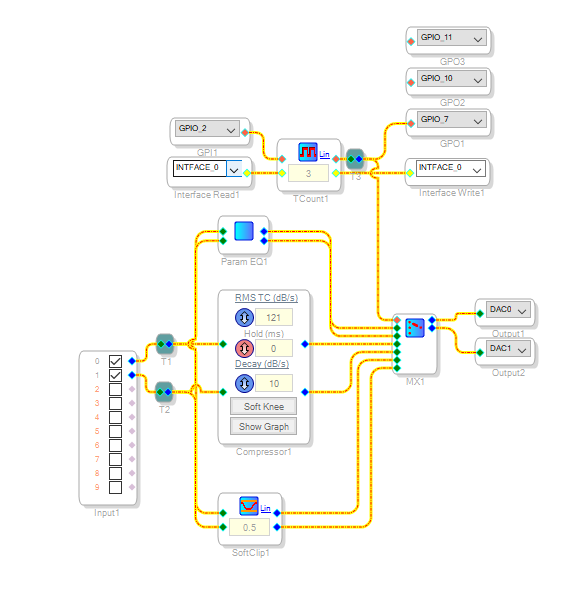

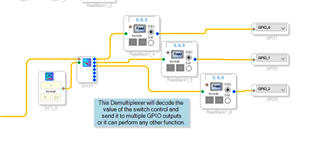

You were sort of on the right track. You were grabbing the control signal from the toggle counter. You just need to decode it. There are many ways to do it but the easiest is to use a demultiplexer.
You can see and test the rest of the project here:
ADAU1701 Toggle Counter to Index Selectable Switch.zip
This project also uses a toggle counter to select different signals.
Dave T
Great, thank you for your help, sir.
