the quetions about ADSP21489 and it's external SDRAM

Processors & DSP shihong sun Jul 7, 2020 00:00 1 replies Original on forum ↗

shihong sun Question

Jul 7, 2020 00:00

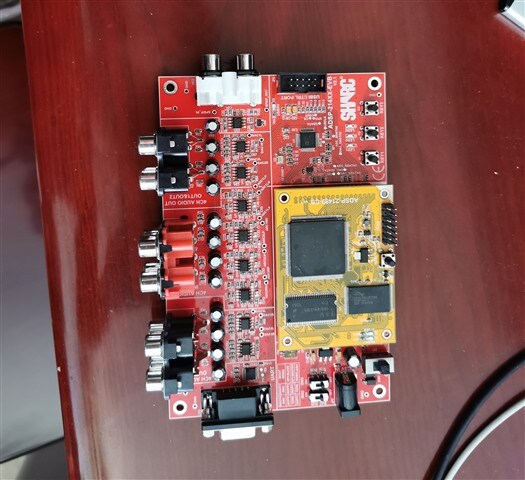

In the ADSP21489 eval-board, the mounted SDRAM is 16 bit /16M. My questions are as follows:

1.Can I use 8bit - SDRAM replacing the original 16 bit one?

2. Can adsp21489 with 100-lead packages connect with external SDRAM?

Thanks a lot!

21489

dsp&processors

Report

ADIApproved Reply

Jul 31, 2020 00:00

Hi,

The ADSP-21489 has A SDRAM controller that supports a glueless interface with any of the standard SDRAMs. I would suggest you look into the EE-286 note discusses the SDRAM interface with ADSP-21489 processor. An example code is provided in the associated ZIP file. Finally, the EE-note also discusses SDRAM throughput optimisation guidelines.

Please follow the below links,

For EE-286 note :-
www.analog.com/.../EE286_rev5.pdf

For Example code :-
www.analog.com/.../EE286v05.zip

Furthermore, Please reach us in case you have any doubt.

Regards,
Anand Selvaraj.

Report
