sigmastudio meter bars

SigmaDSP & SigmaStudio gabi.furman Aug 18, 2020 00:00 1 replies Original on forum ↗
Subscribe
gabi.furman Question
Aug 18, 2020 00:00

Hi

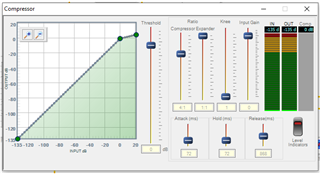

Attached is a picture of the compressor.

In the upper right side of the picture you can see three meters – IN, OUT, Comp.

I want to read these meters values from the device and did not find any reference/address in the files which created by the Sigma-studio.

Can you tell me if and how I can read these values.

appreciate your help.

Report
Brettcoupe Reply
Aug 18, 2020 00:00

These are hidden

I worked out some time ago that the address of the gain reduction meter was at address 4 higher than the published ALG0_STDPEAKINGCOMPRESSORALG2ATTENUATION_ADDR

So I use the below MOD_HI_LIM_ALG0_STDPEAKINGCOMPRESSORALG2ATTENUATION_ADDR +4;

If you have a Sigma Board you can use a USB Probe to see what messages are being sent and received to the Dev Board to find all these addresses

I would also gather that the in and out meters are also in this general area

Thanks
