Register compatibility ADAU1452 <> ADAU1462 ?!

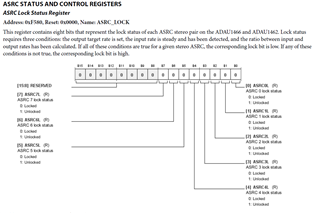

Though it is said the two mentioned parts are 100% SW and register compatible their spec says something different:
Is the ADAU1462 spec correct?
Thanks
Audio Signal Processors
adau1452
SigmaDSP Audio Processors
adau1462
No one able to answer?
I would be glad to answer, as I'm going to use both the 1452 and 1462 for their pin compatibility; but I don't have both devices here for testing at the moment, only the 1452.
Also, by looking closer at the images you shared, I don't see the difference.
Those registers look 100% identical.
In fact they are not identical, one say locked bit value (0) zero, another say locked value (1) one. so they are inverted on value, but bit order is the same, also i do not have both DSPs to check if is a mistake on datasheet.
Nice catch!
So everybody here have a 1452 right? We just need one tester with a 1462... :/
