How to eliminate feedback in Sigma DSP ADAU1452

SigmaDSP & SigmaStudio wei88129 Aug 6, 2021 00:00 1 replies Original on forum ↗
Subscribe
wei88129 Question
Aug 6, 2021 00:00

HI everyone

I have the same problem with https://ez.analog.com/dsp/sigmadsp/f/q-a/64300/how-to-eliminate-feedback-in-adau1701/193164#193164..But our DSP is ADAU1452.There are some tool and function.ADAU1452 don't have.

I am using directional microphone and speaker to achieve a simple aduio function,but I have a problem is microphone receive the sound from speaker.it will produce a whistle kind of sound.

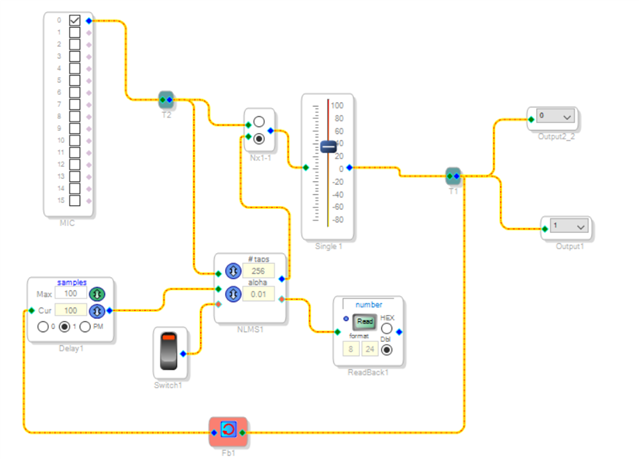

I have try NLMS fillter to sovle,but its result isn't obvious.

Please help me

to resolve this problem.

thank you.

ADIApproved Reply
Oct 29, 2021 00:00

Hello,

Sorry for the delayed response.

We would suggest you to refer the attached schematics which will be the better way of implemention for feedback suppression on ADAU1452.

Regards,
Lalitha.S

EZoneFB.dspproj
