Hi,
i am using a limiter in an ADAU1452 hardware project. After every reset of the adau1452 and loading of the dsp programm and parameter the limiter starts with <-70dB gain and then slowly over several minutes runs up to 0 dB gain. This happens even for small input signals.
t
It shows that the behaviour is dependant of the decay value.
The higher the value the slower the gain moves up.
This can be reproduced with the evalboard,

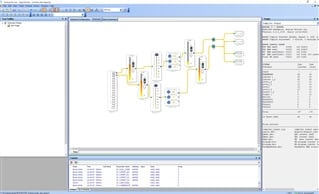

Unfortunatly i don't arrive to share the project here, so i only have a screenshot.
My SigmaStudio version is 4.6
Can anyone reproduce this behavior?
And can anyone explain it?
Maybe the explanation is that the Decay unit is not dB/s but ms or at least a time.
The lower the decay the higher is the distortion.
So decay 8 fits about 10ms and decay 23 about 10 000ms.
Now i found one remark in the help:
Larger values result in longer decays, with 23 never recovering to the original gain.
Butvi also find the formula:
Decay dB/s Value stored in RAM = (fs / 26373 * Decay), where “Decay” is the value entered in the block.
Seems to be some discrepancy between the two definitions in the help.
