SC589 B1.2 No audio
My current specs: SC589 Board 1.2 , Bom 1.8, CCES 2.5.1, ADI_ADSP-SC5xx_EZ-KIT_Lite-Rel2.0.1
I manage to compile and run some samples but I'm not getting any audio output. Can someone confirm that the audio samples run with my current configuration without any change in code. Thanks
sc589
2.5.1
2.0.1
audio
1.8
1.2
Show More
Hi. I don't have this board, but I have encountered a similar experience.
If you are sure you didn't change anything in the example code and the code is supposed to work, you may have a hardware problem.
The problem on my case, was that some switches of the board were incorrectly set. I found the switches correct positions in the various files that are in the example project directory... maybe your case is similar, you should check.

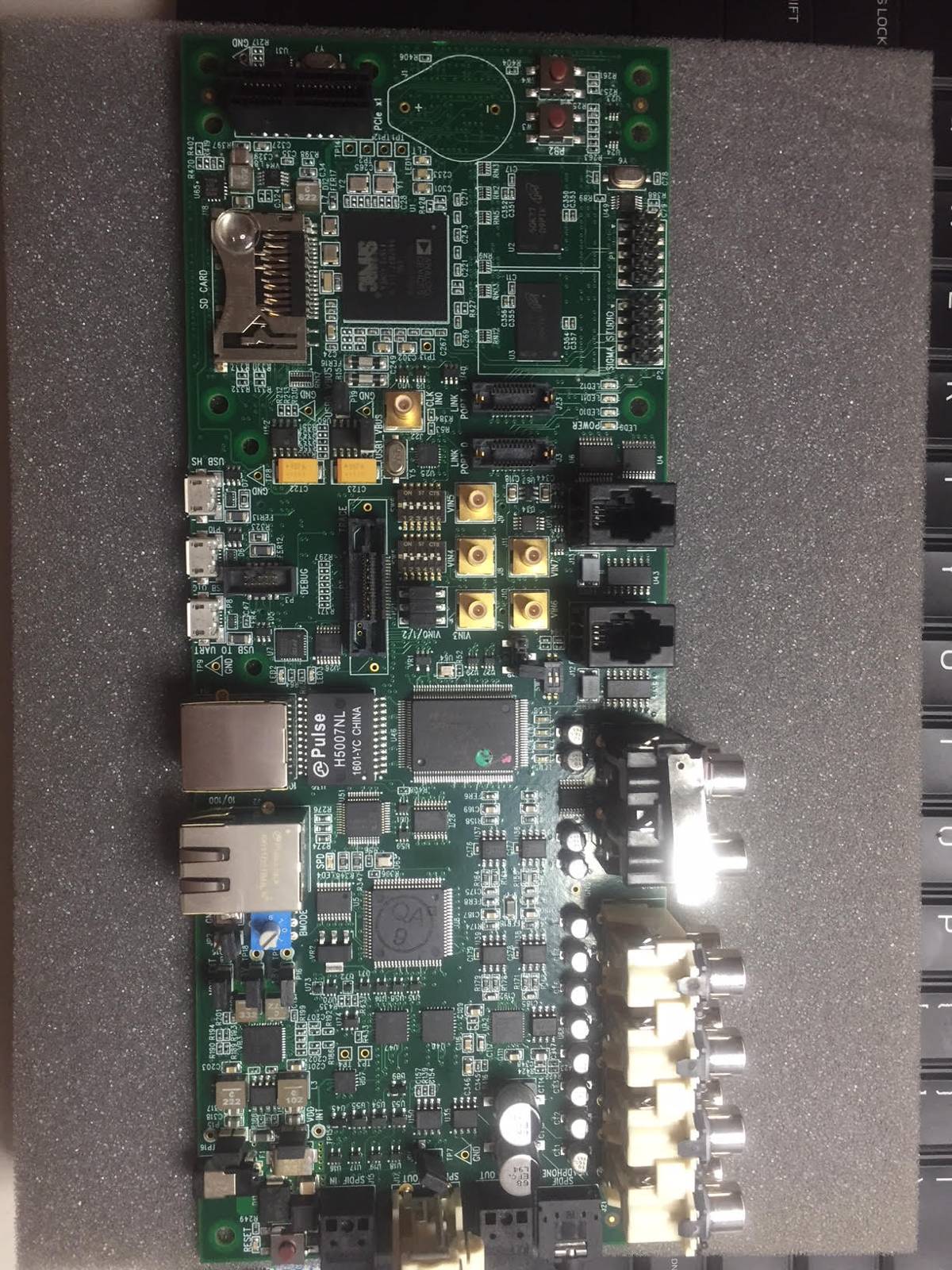

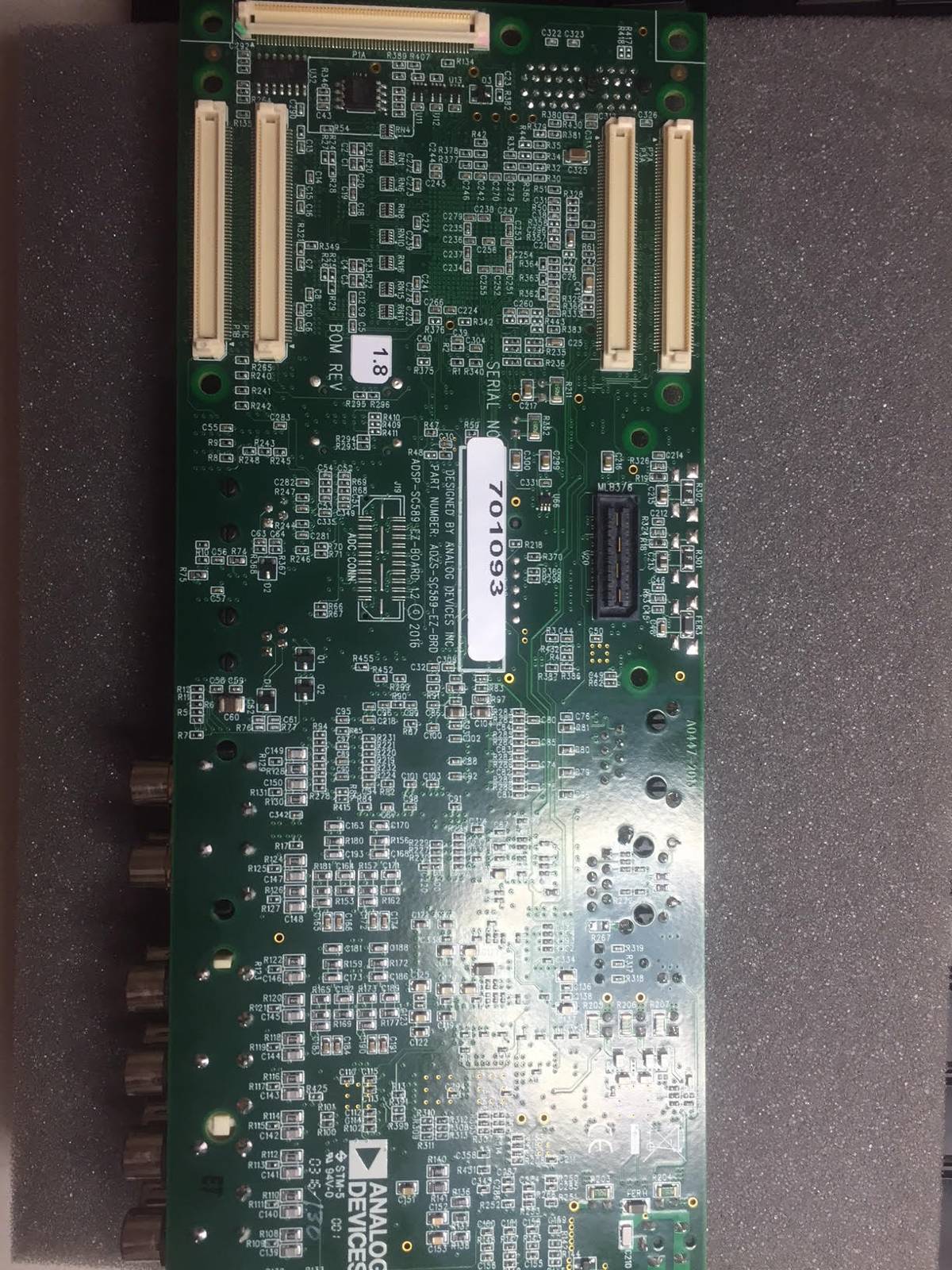

Hi Pereira, thanks for the tip. Here are the pictures of my current jumper configuration. As my understanding this is the default jumper setting stated in the manual. Can someone compare with their board and see if something its in the wrong position. Thanks
Hello,
An SR has been logged through private support for this issue, and will continue to be dealt with through that channel. We will post the outcome here, if appropriate.
Best Regards,
Jithul
Hi,
May i know which version of SigmaStudio and SigmaStudio for SHARC package are you using?
Best Regards,
Sakthivel.P
This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
Thank you,
EZ Admin
