The example of TDM with two DAC chip like ad193x?
Recently I used the BF518 to control two AD1934 to play audio through TDM mode.Last ad1934s can play in 8 channels. Could you give me some examples? Like this picture.
Audio Products
ad1934
Audio D/A Converters
Hi,

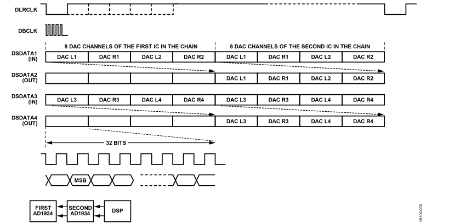

You are showing the Dual-line Daisy Chain TDM data flow here, which is used for high speed multi-channel TDM configurations. Can you be more specific about what you kind of examples you would like to see? Schematics? Register settings? I will need some system information from you: how many channels and what sample rate will you be using? What MCLK frequency will you be supplying?
Best regards,
Coleman

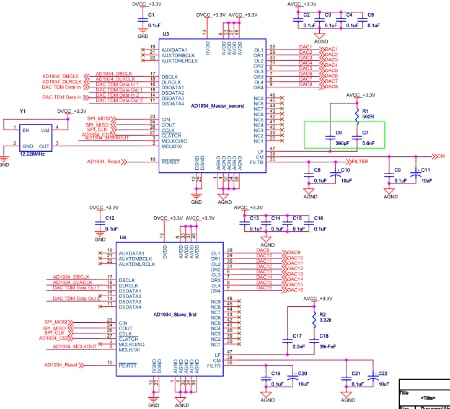

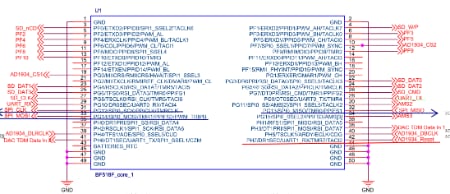

See figure below. It is our part schematic. I want a reference schematic, and the best is that the register settings. I will use 8 channels. The sample rate is 44.1khz or 48khz. And the MCLK frequency is changed according to the sample rate. 12.228Mhz or 11.2896Mhz. Can you help me give me some similar example?
Hi Liu,
You have started parallel threads that are related. I will answer your questions here:
https://ez.analog.com/message/85446#85446
Regards,
Coleman
