ADAU1777 I2S output
Hello,
When I use adau1777 serial output ports, I encounter some confuse problem.

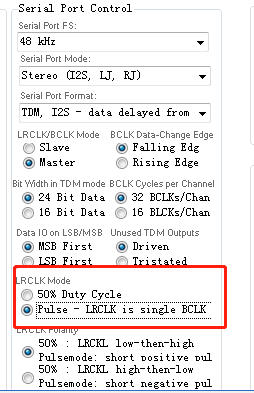

When I configure I2S SAI as below.
the first channel data miss.
When I configure the LRCLK mode as Pluse, others is same with above.
the first channel data come back
And I try tdm4 TDM8. When I set LRCLK mode as 50% Duty Cycle, the first channel all miss.
Have you encounter such problem ? Is hardware or setting fault ?
i2s_output
other
Integrated/Special Purpose A/D Converters
i2s_tdm
adau1777
Audio CODECs
Show More
Hello Brom,
Sorry it took so long to get to your issue. The serial ports do function correctly and have been fully tested so it is not a silicon issue. Can you send over your project?
It is far easier and faster to look at the project rather than asking many questions over the forum.
Dave T
