DMA examples do not build for ADSP-21569

Processors & DSP SteveADT Jul 6, 2022 00:00 1 replies Original on forum ↗

SteveADT Question

Jul 6, 2022 00:00

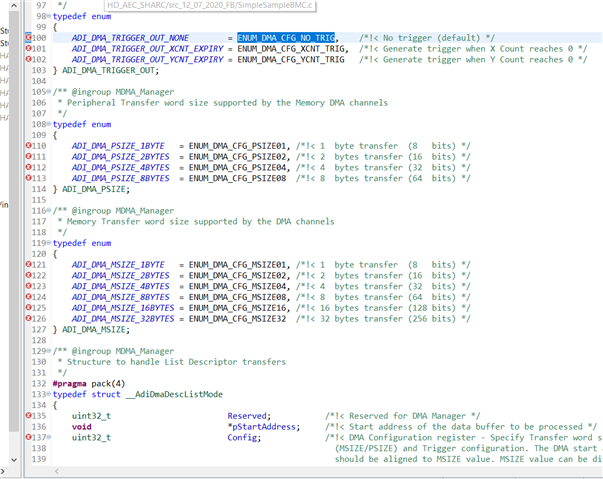

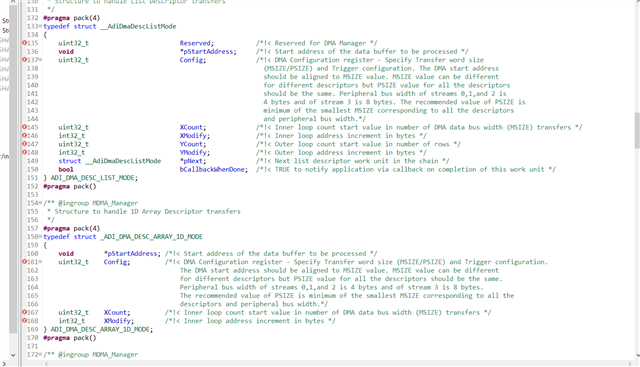

Mem DMA Copy using 1D Array Mode does not build for ADSP-21569. Had to add #include <services/dma/adi_mdma_2156x.h> to resolve some functions definitions and the interfaces did not match.

In addition, some of the missing definitions are DMA specific others are basic type definitions.

Is there any way to get a DMA example that can build for the ADSP-21569?

ADSP-21569

Audio Signal Processors

software

Cross Core Embedded Studio version 2.9.4.0

SHARC Audio Processors/SoCs

Report

ADIApproved Reply

Jul 7, 2022 00:00

Hi,

We have an example for Memory DMA Copy using 1D Array Mode in Board Support Package (BSP). Please download BSP package of ADSP-2156x using the below link.
download.analog.com/.../ADI_EV-2156x_EZ-KIT-Rel1.0.1.exe

After installation, please navigate as given below.
<installation Path>:\Analog Devices\ADSP-2156x_EZ-KIT-Rel1.0.1\ADSP-2156x_EZ-KIT\Examples\services\mdma\MemCopyOneShot1D

Regards,
Anand Selvaraj.
