ADAU1467 I2S IN/OUT (ASRC)

-JFK- Question

Jul 18, 2022 00:00

Hi All,

Coming from ADAU1701, I need more channels and want to not use any internal ADC/DAC.

I'm builbing a 4.1 audio amplifier.

3 inputs are needed:

-Bluetooth

-Stream Spotify from ESP32

-Analog IN

So, all will be in I2S.

What I will have in hands in a couples of days:

-1x ADAU1467 board

-1x ESP32 board

-3x DAC: ES9018K2M : https://www.audiophonics.fr/fr/dac-diy/audiophonics-dac-sabre-es9018k2m-i2s-spdif-vers-rca-32bit-384khz-dsd256-p-15975.html

-1x ADC: WM8782: https://www.audiophonics.fr/fr/appareils-hifi-adc-audio/adc-convertisseur-analogique-numerique-wm8782-i2s-24bit-192khz-p-13351.html

-1x Bluetooth: CSR8675: https://www.audiophonics.fr/fr/modules-bluetooth-reception-sans-fil/module-recepteur-bluetooth-50-csr8675-aptx-hd-vers-i2s-p-14184.html

New to I2S and ADAU1467, may you please guide me setting the I2S Bluetooth (CSR8675).

As the two other input can be set in Slave mode, I think I will not have much problem.

The CSR8675 doesn't share a MCK, so I guess that I will have to use an internal ASRC ?

In my Google Drive sared folder, you can see a drawing of my setting and the SigmaStudio file that I try to anticipate.

https://drive.google.com/drive/folders/19UtvNYmSORkVImngldLIv2LSFQgXZbfe?usp=sharing

May you please check if I'm right about the ASRC settings ?

Thank you in advance, as it's my first try on ADAU1467, I'll have other questions !

Regards.

Audio Signal Processors

CSR8675

software

ES9018K2M

sigmaStudio 4.7

adau1467

i2s

esp32

SigmaDSP Audio Processors

WM8782

adau1701

Report

Harishgowtham Reply

Jul 20, 2022 00:00

Hello JKF,

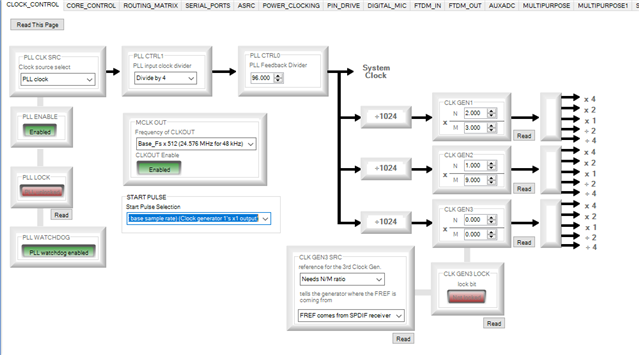

Your project configs seem good. Here are few things to correct. You intend to run your project at 192KHZ right?. So then the setting for N/M should be 2/3. It only gives you 192KHZ. Please refer the attached picture. The start pulse should be the Base fs. When you set the CG to 2/3 then you base fs is 192KHZ.

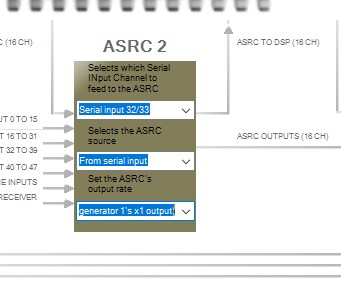

The same applies for all the ASRCs. Set that as a base fs. So everything will be in sync.

It's bit confusing that in your project you are bringing all the three sources into the ASRC but in your attached block diagram it shows only the Bluetooth module source is going through the ASRC. Anyway it's not a big problem. For ADC and ESP32 it is not necessary to go through the ASRC. It is slaved by the DSP.

The AUXADC's output has to be left shifted by 14 bits. AUXADC outputs a 10 bit number as default.

The SDATAIO pin won't be giving any clock signal. It is a data pin specially made for TDM compatibility. So you can use MCLK OUT pin to slave the ESP32 and the ADC. The DSP should also be the master for BCLK and LRCLK of these sources.

I hope I have covered everything.

Kindly do reply if you need anything.

Regards,

Harish

Report

-JFK- Reply

Jul 20, 2022 00:00

Hi Harish,

I just received the DSP board, I'll be able to do tests this week.

You right, it's strange to see all sources go through ASRC, it's a mistake from me in the SigmaStudio file.

Thank you A LOT to help me to learn.

I'll come back soon.

Regards.

Report

-JFK- Reply

Jul 23, 2022 00:00

Hi Harish,

Update:

I have received the ADAU1467 board, it own a 12.288MHz crystal.

I have a ES9018K2M DAC.

The ESP32 became a Raspberry Pi 3.

To start, I have test connexions between the RASPI and the DAC.

It work well using BCLK, LRCK, DATA, GND.

The RASPI is set at 320Khz/24bit.

Now I have to "insert" the ADAU1467.

Input: BCLKi0, LRCKi0, DATAi0, GND (tested with i1 too)

Output: BCLKo0, LRCKo0, DATAo0, GND (tested with o1 too)

Should I have to set the MCLK OUT to 12.288MHz for 48KHz ?

Tested with no luck...

I only get "digital sound noise" on the DAC output, noise start when I Play song and stop on Pause.

I guess I have problem with clock's...

May you have a look ?

I made a light version to focus on clock's and input's/output's.

drive.google.com/.../19UtvNYmSORkVImngldLIv2LSFQgXZbfe

Setup goal summary:

Bluetooth: CSR8675->(BCLK/LRCK/DATA up to 320khz/24bit)->ASRC(192KHz/24bit)->DSP

Spotify: Raspberry->(BCLK/LRCK/DATA 320KHz/24bit)->ASRC(192KHz/24bit)->DSP

Line IN: ADC->(BCLK/LRCK/DATA 192KHz/24bit)->ASRC(192KHz/24bit (useless but easier if I change the ADC))->DSP

DSP->(BCLK/LRCK/DATA 192KHz/24bit)->3x ES9018K2M DAC

Thank you.

EDIT !!!!

It work, it was coming from clock settings.

Report

Bolk Reply

Oct 4, 2023 00:00

Hi JFK

I'm doing almost the same project.

Driving 2 speakers with 3 ways crossover.

I2s input are Pi 4 + bluetooth qcc5125 24bits 192khz pcb.

I2s ouput to 3x DACs ES9018K2M

Could you upload you latest project file ?

It would help a lot ! Thanks !
