pdm mic ADAU1787

Hi,

I am working on ADAU1787. I am trying to connect PDM mic with ADAU1787.i connected PDM mic as according to following connections.

3V3 -------- 1.8v // J7

GND -------- GND //J7

SEL --------- 1.8v

CLK --------- CLK0 //J5

DATA -------- DATA 0/1 //J5

6232.DIGITAL MIC.dspproj

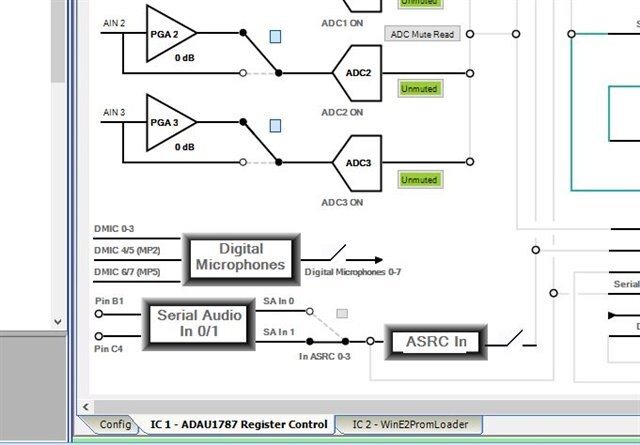

mic is not working with this configuration. In MAIN CTRL tab, as shown in image there is wire broken in digital microphone section. i don't know how to connect it.

Thank you

added one image
