Dear Sir or Madam,
I'm using the ADAU1467 and I'd like to use it to communicate through I2S.
How can I use Sigma Studio to choose which I2S input/output to use ?
For now I'd like to receive data from a certain I2S input and directly transmit it to an I2S output.
Have a nice day,
Kind regards,
William.
Edit Notes
Moved & added tag
[edited by: emassa at 8:38 PM (GMT -5) on 2 Feb 2023]
Audio Signal Processors
software
adau1467
SigmaDSP Audio Processors

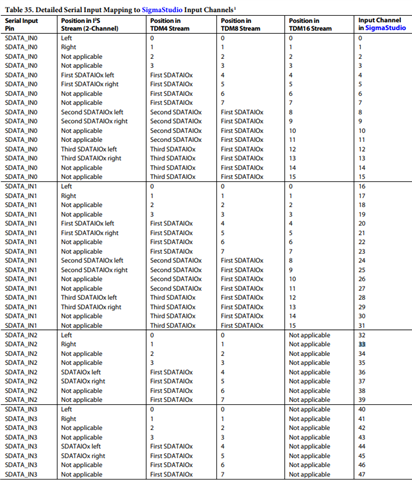

After going through the device datasheet, I think I found the answer :
Hello William,
I'm glad that you found it. If you need further assistance with setting up the serial ports, master/slave connections, SDATAIO pin configs etc., then please do reply.
We will be happy to help you.
Regards,
Harish
