ADAU 1467 Bush Button Volume Control with GPIO
I am using the EVAL-ADAU1467Z and I am trying to make the 'PushButton Volume, Mute' block work.
Schematic:

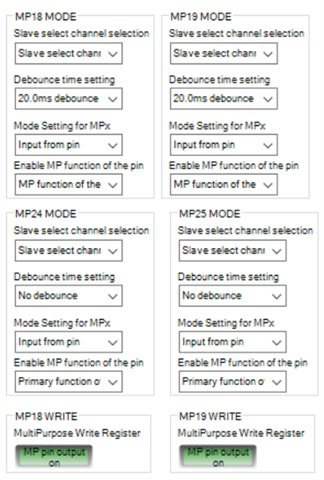

Multi Purpose Settings:
I use the MP pins 18 and 19 of the eval-1467 board. The push buttons short the MP pins to 3.3V. I did not manage to make the PushButton Volume block work yet. What am I doing wrong here?
Hello MarcoMan,
Please try this project.
pushvol.dspproj
In the ADAU1467 Eval board, serial input port 2 is connected to the ADC. You are using serial input port 0. Are you directly giving digital signal in that port?
The above attached project is a working project. If you are still unable to make it work, then it has something to do with the hardware connections.
Kindly do reply if you need further assistance.
Regards,
Harish
