I want connect the two stereo inputs to the EVAL-ADAU1467Z unit in inputs 32-33 and 36-37 .

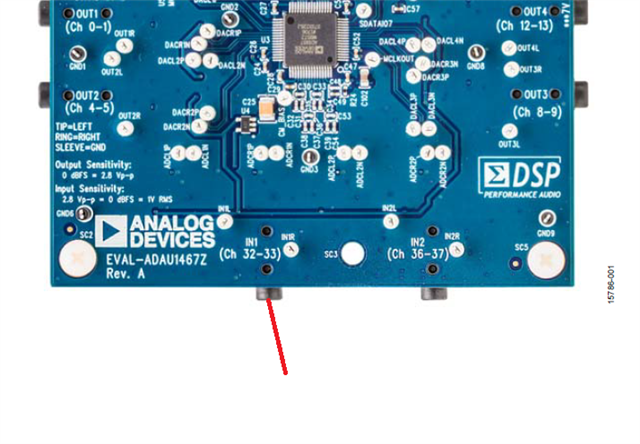

When connecting input to 32-33 Through the EVAL-ADAU1467Z in J14 I heard the outputs well.

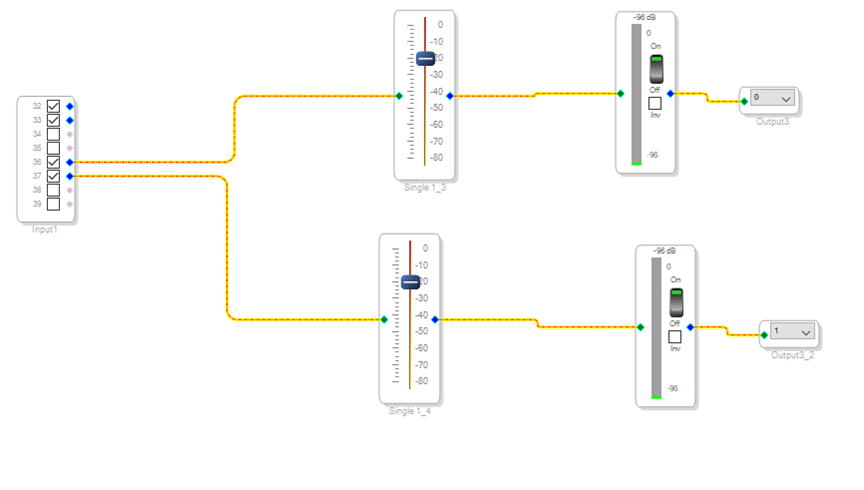

See the sigma studio file:
But when connecting the input to 36-37 and also connect the 3.5mm plug to J15 in the board I don't hear the output .
Can you explain what need to solve the problem??

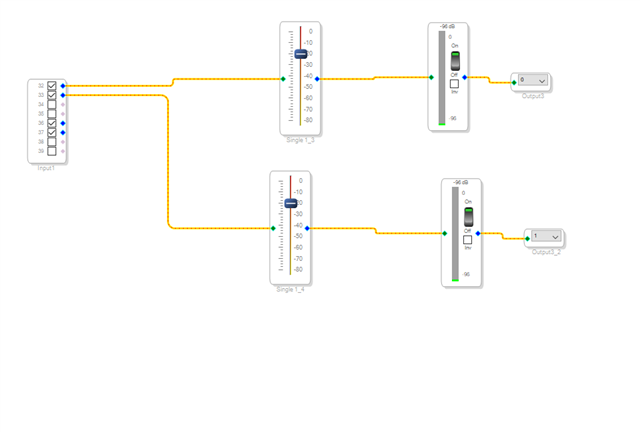

See the sigma studio file:
Audio Signal Processors
hardware
Sigma Studio 4.6
adau1467
EVAL-ADAU1467Z
SigmaDSP Audio Processors
Show More
Hello,
It's obvious that you might not have configured the SDATAIOx pins.
So, please try the attached project where all the inputs and outputs of that eval board are enabled. You can see the register settings those have been set in >> Hardware config >> Register control >> Serial ports >> SDATAIO.
I have put a Mux and Demux at the input and output. So, select the respective inputs and outputs.
ADAU1467Z All input output enable.dspproj
Kindly do reply if you have any queries.
Regards,
Harish
