By detecting the gain of an input signal. Reduce the gain of another input signal
I want to use ADAU1452 to implement a function that inputs two audio signals (signal A and signal B) to detect the gain of signal A.
When the gain of signal A is greater than -60dB (or other values), the gain of signal B is reduced. When the gain of signal A is less than -60dB, the gain of signal B returns to normal.
Audio Signal Processors
adau1452
SigmaDSP Audio Processors
Hello,
Please refer the attached screenshot and the project.

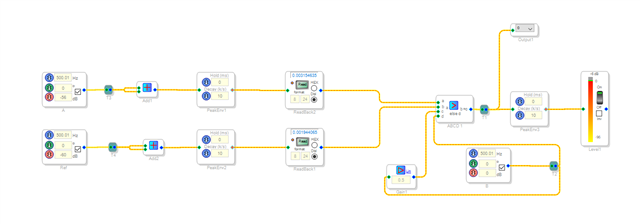

As you see below, when the signal A is greater than -60dB then there is a reduction in the gain of the signal B. You can scale the signal level as you want with the gain block.
As you see here, when the signal A is lower than -60dB then the signal B is sent to output without gain reduction.
signal_compare.dspproj
If you have further queries, then please do reply.
Regards,
Harish
