Exporting Files from Latest Sigma Studio+
Hi,
When exporting the system files from the latest version of SigmaStudio+, I've noticed that the Address to read the value of a level detector is not included, is there any reason for this? Is it not recommended to read a value directly from a level detector?

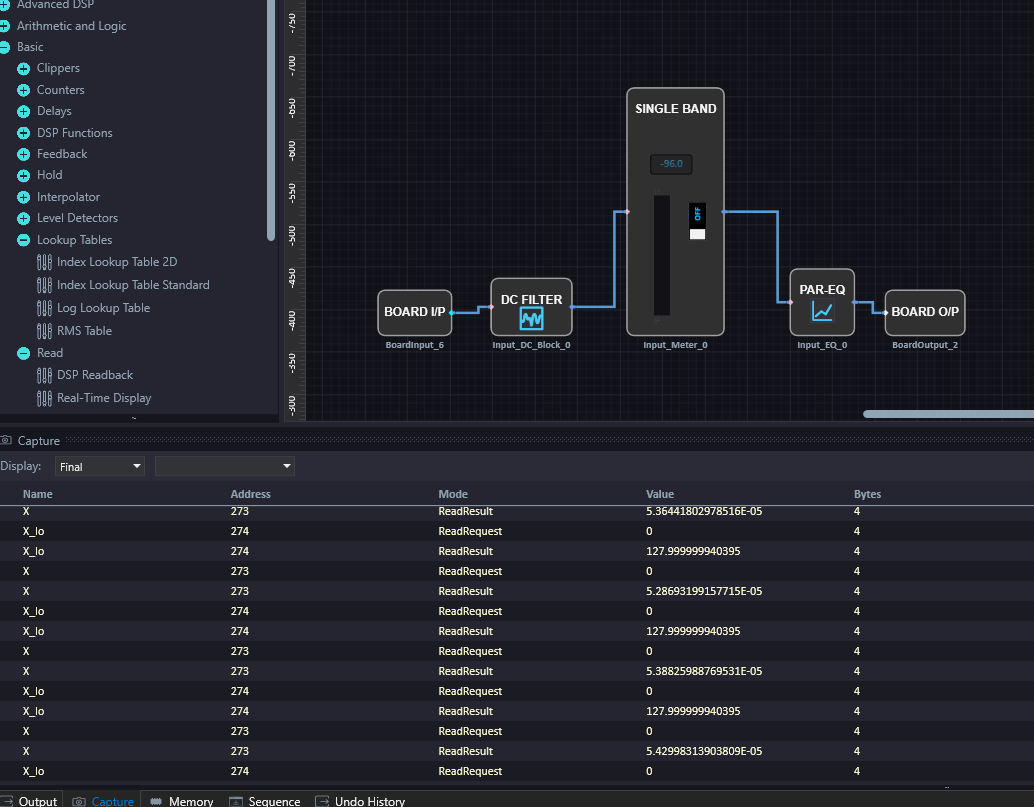

For example, I use a SingleBand with Numerical Display Level Detector as below:
However, when i export the files the only address values i am given are
However, from checking a few of the same blocks in the export I can see that the X register is 10 addresses incremented from the TConst Address.
I.e in this case Tconst is at Address 263 and X is at 273.
Is it expected that this is always the case?
Audio Signal Processors
software
adau1467
SigmaStudio+ 2.0
SigmaStudio+ 2.3.0.2
Sigmastudio+
SigmaDSP Audio Processors
Show More
As an aside, I also noticed in the export that the *_DATA_MEMORY and *_MEM_PAGE defines are duplicated, not a big thing, but might be an easy fix
Hello kanemcnamara,
Can you attach your project so I can look at it in more detail and output the reports myself?
Thanks,
Dave T
Hi Dave,
Please see attached a stripped-down version of the issue that still exhibits the problems with export output.
StrippedDownLevelDetector.ssprj
Best,
Kane
