error message
Hey all. I hope this is the right place for this. I'm getting the following meassage when trying to send a proj to my amp board. The board is a Dayton KABD 4100 if that makes a difference. I've programmed this board before without issue. Not sure why it wont let me now.
Audio Signal Processors
software
SigmaDSP Audio Processors
adau1701
Hello diyhfi,
It seems you are running out of program memory; you have to re-work the schematic to reduce memory consumption.
Please attach your project, we will have a look.
If you want to confirm PM usage is the actual problem, then remove some blocks and try again.
Regards,
Harish
Hello diyhfi,
Let me add to what Harish mentioned and I agree with him that I think you are exceeding the resources available in the part.
Here is how you find it the info. It does not show up on the SigmaStudio screen. It is in a file. Here is where you find it.

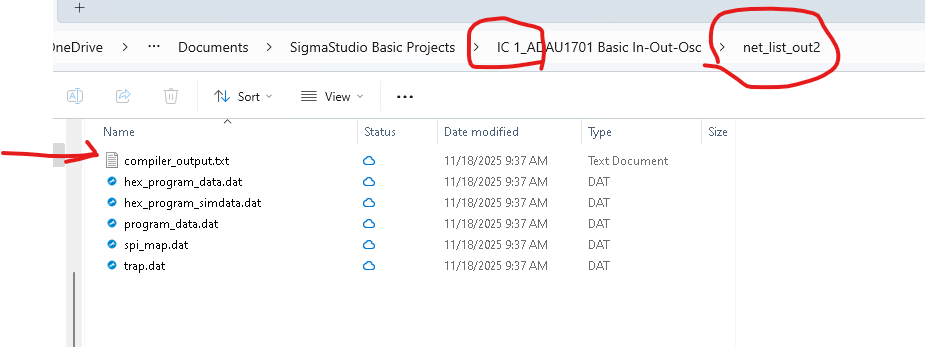

When you compile your project, a folder is created in the folder with the IC number of the DSP. I will assume yours is IC-1 like most project are.
Then in that folder is another folder called "net_list_out" and in that folder is a file called "compiler_output"
In that file you will find this summary along with other details.
Dave T
