I'm working on a project using a QCC5125 connected to an ADAU1701 via I2S communication.
Subscribe

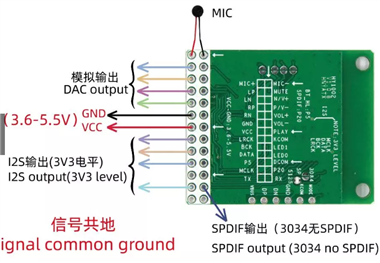

I'm a beginner and need some advice. I want to work with a QCC5125 project connected to an ADAU1701 via I2S. I've connected Data-MP0, Bck-MP5, and Lrck-MP4, but there's no sound. How do I connect them?
What settings do I need to adjust in Sigma Studio? Thank you.
Audio Signal Processors
hardware
SigmaDSP Audio Processors
Hello Chet0093,
Please attach the sigma studio project file.
I can see a crystal on board, so the MCLK input is 12.288MHz from the crystal, right?
Regards,
Harish
