SigmaStudio Mixer Errror

SigmaDSP & SigmaStudio Gundang Mar 26, 2018 00:00 3 replies Original on forum ↗
ICs: ADAU1452
#audio+signal+processors#adau1452#sigmadsp+audio+processors
Subscribe
Gundang Question
Mar 26, 2018 00:00

I have been using the ADAU1452 for years.
Sigma Studio has a serious bug in NxM Mixer.
I confirmed using Sigma Studio version 3.17, but the result was the same.
Bugs in the NxM Mixer vary with the number of inputs and outputs.

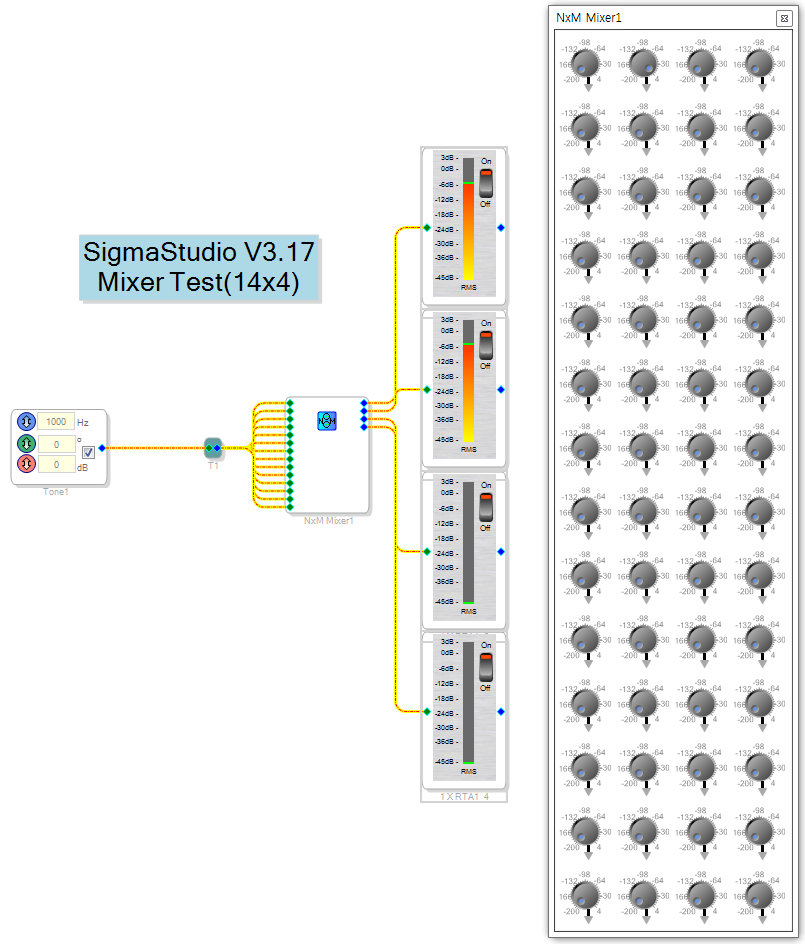

For example, in the 14x4 NxM Mixer, after setting all levels to -200, adjust the 1x2 level to 0dB as shown in the figure, so you can see the signals at 1 and 2 outputs.
Because of this bug, whenever I use the NxM mixer, I have to check all Input / Output every time.
Please fix this problem.

Audio Signal Processors

adau1452

SigmaDSP Audio Processors

Report
ADIApproved Reply
Apr 3, 2018 00:00

Hi Gundang:

We apologize and will look into fixing this bug ASAP, in the mean time can I suggest that you use the audio Signal Router:

Please comment.

Miguel

Report
DaveThib Reply
Apr 3, 2018 00:00

Hello Gundang,

I have tested this with a 4x4 mixer and so far it is working fine.

Can you attach your project?

Also, which revision of SigmaStudio are you using?

Thanks,

Dave T

Report
dkybchoi Reply
Jun 26, 2018 00:00

Dear Miguel,

Can you advise if audio Signal Router is available for ADSP 21489 ? It seems that I cannot find it in the Toolbox

I am using below version

SigmaStudio 3.14 Build 2 Rev 1630

SigmaStudio For SHARC Rel 2.2.0
