What is the best way to make a typical 10 band EQ

SigmaDSP & SigmaStudio PaulBKaraoke Aug 29, 2017 00:00 4 replies Original on forum ↗
Subscribe
PaulBKaraoke Question
Aug 29, 2017 00:00

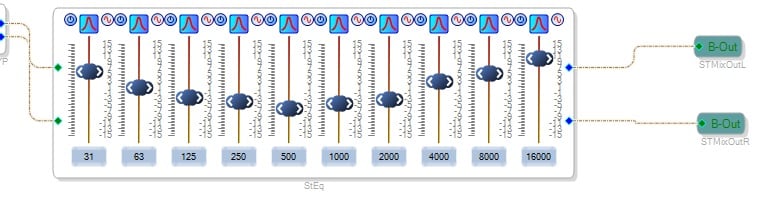

I made a 10 band stereo EQ with a medium size EQ peaking and grew the algorithm for 10 bands. I then download the filter values that I created from the filter table tool to set them to +/- 15db in 20 steps. when grown to 10 bands are the bands connected in series or parallel? if in series does it make a difference if the bands go from low to high. And, what should the Q factor be? all the same Q or different for each band (my Q's are set to 1.8 for all not sure where i got that number). Also, is it better for me to put 10 general 2nd order bandpass filters in parallel, each with a +/- 12b volume control and then merge them to make the EQ? that would be easier from a front end control to just send a volume control for each band instead of using a filter table. This may be just a matter of preference, but i would like to get an idea of which way is best and what type of filters to use. Thanks, PaulB

#10 Band EQ

ADIApproved Reply
Aug 29, 2017 00:00

Hi Paul:

the best way to create a graphical EQ is to use the Holters filter available in SigmaStudio. Higher order holters filters will yield great cross band response.The are more expensive than the regular biquad filters you refer.

Regards

Miguel

PaulBKaraoke Reply
Aug 30, 2017 00:00

Thanks for the reply, I can't find a reference to Holter in the Sigmastudio. Can you explain what that is please?

KJBob Reply
Aug 31, 2017 00:00

Hi Paul,

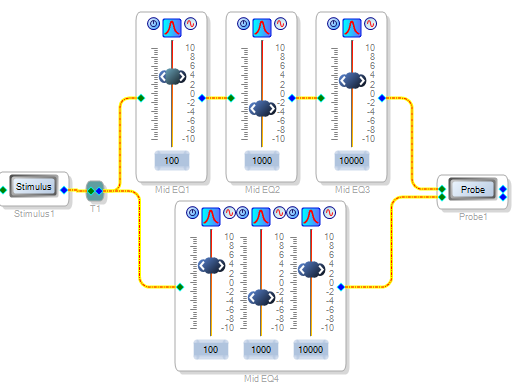

To answer your very first question: The grown filters operate in series -- in other words. the two arrangements shown below produce the same frequency response -- although the grown filter uses fewer instructions on certain chips such as the ADAU1452:\

Normally when the filters are spaced so that each frequency is the same fraction of an octave higher than the previous one, all their Q's are the same.

Best regards,

Bob

PaulBKaraoke Reply
Aug 31, 2017 00:00

Thanks for the advice KJBob
