To know the exact board size of EVAL-ADAU1452MINIZ

SigmaDSP & SigmaStudio takumi3952 Aug 24, 2017 00:00 2 replies Original on forum ↗

takumi3952 Question

Aug 24, 2017 00:00

I would like to make a box to house this board.
Therefore, I want to know the exact appearance dimension of this board and the position size of the fixing hole.

If you have materials, please let me know the URL.
Or do I need to actually measure the real board?

Report

DaveThib Reply

Aug 24, 2017 00:00

Hello,

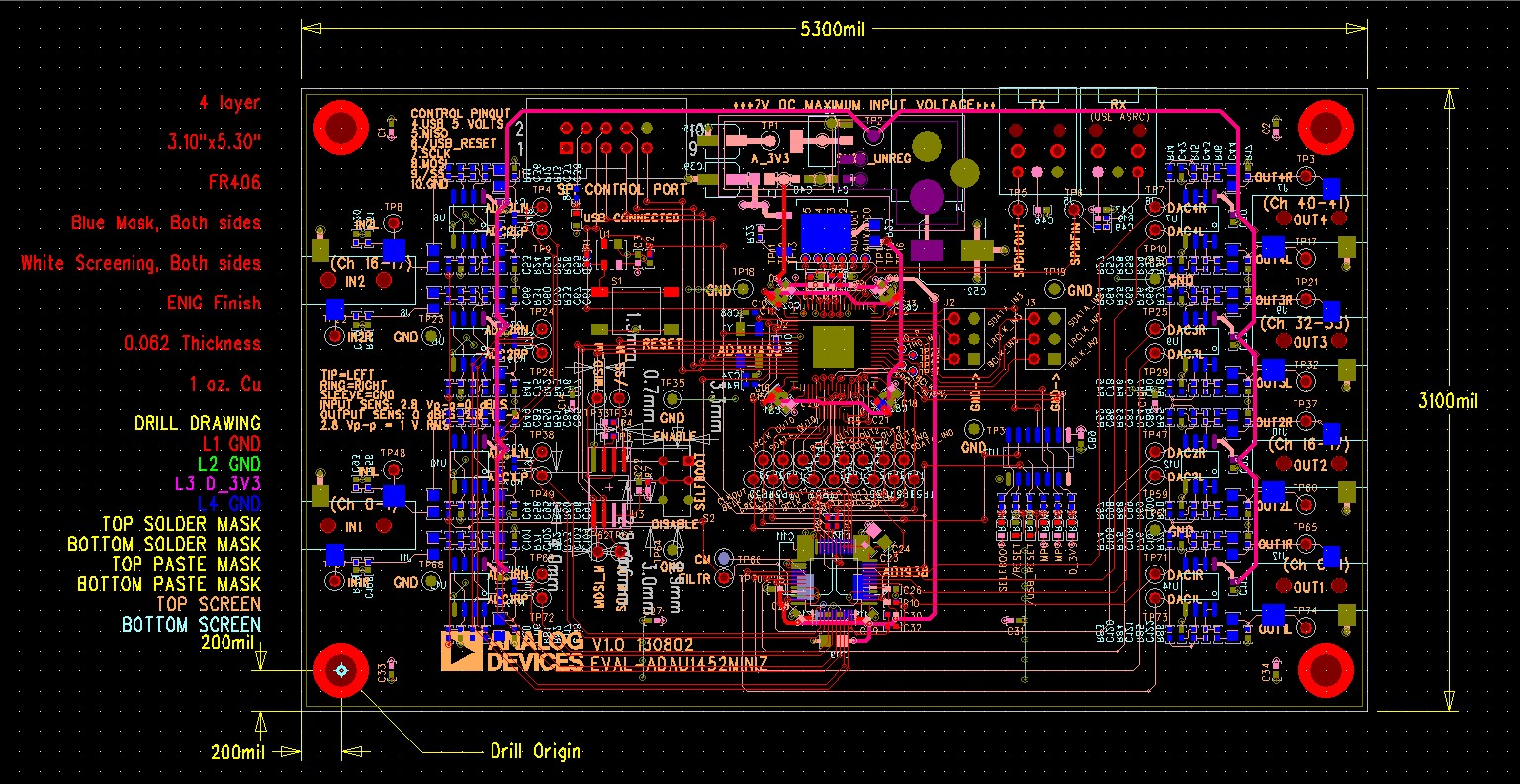

This should answer your size questions...

Dave T


Report

takumi3952 Reply

Aug 28, 2017 00:00

Hello Dave,

Thanks for your quick reply.

Regards,

T.Tanaka
