Problem with ADAU1452
I have problems with this DSP, I can not work in any way.

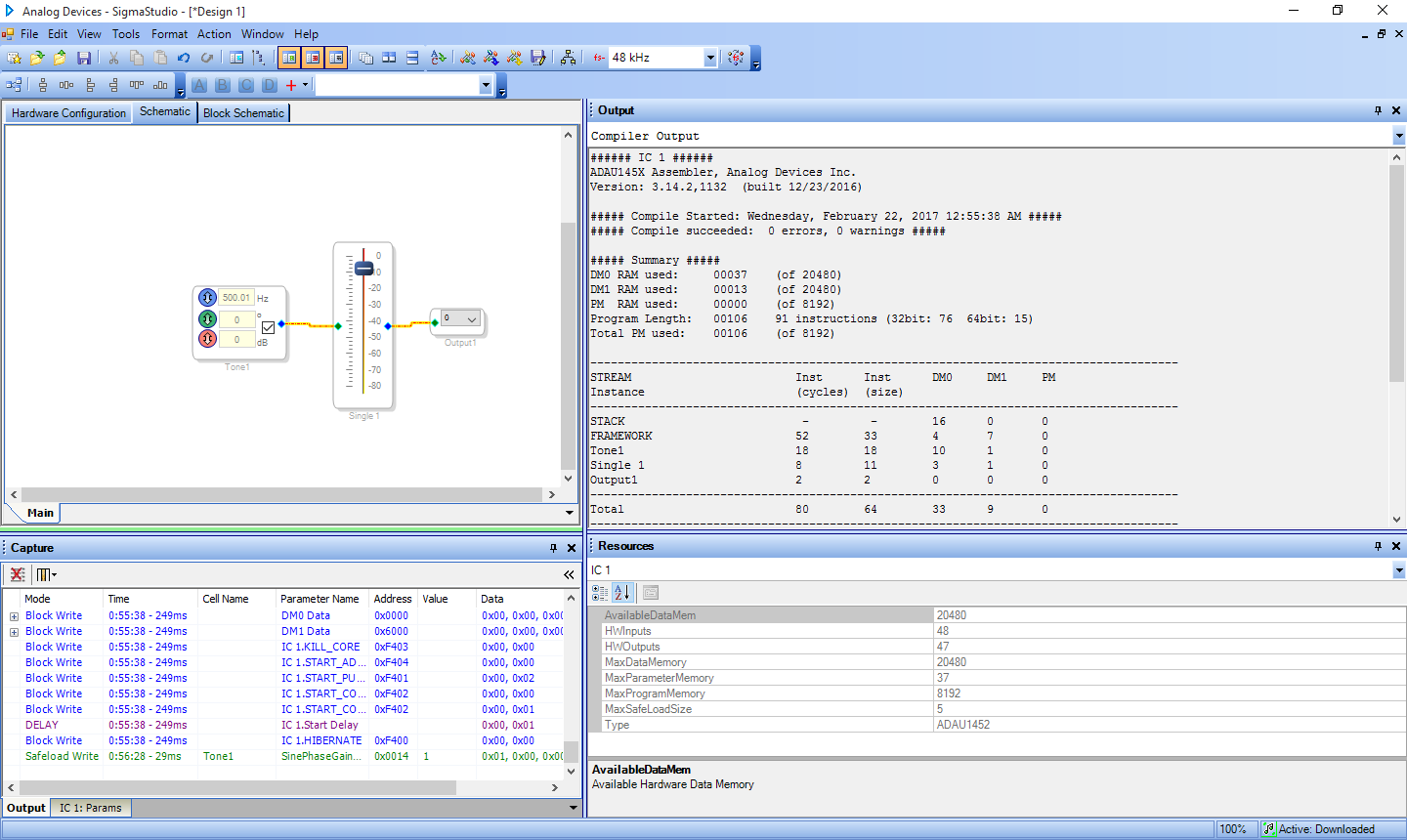

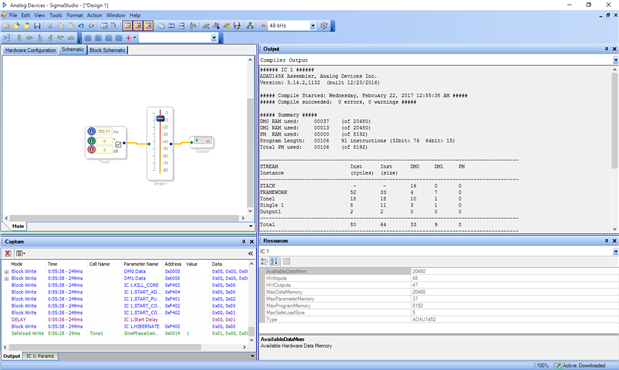

When trying to generate a tone does not generate signal, I attached an image of how the project is.
It should be mentioned that on previous occasions it worked correctly.
I do not find the problem, your answer would be very helpful.
DaveThib
Carlos
Audio Signal Processors
adau1452
adau1452 damaged
SigmaDSP Audio Processors
Hello Carlos,
There are so many register settings that could cause this to not work. In addition, hardware issues could be a problem. Are you using an evaluation board or your own hardware design?
Dave T
Hello dave,
I am using the ADAU1452 SigmaDSP Digital Audio Processor along with the EVAL-ADUSB2Z (USBi) communications adapter, without any additional hardware.
I have not changed any registers; and the reset pin does not work.
Carlos
Hello Carlos,
Sorry for the delay, I have been busy putting out other fires. Is this still an issue?
So you are using the EVAL-ADAU1452MINIZ eval board?
Attach your project.
Dave T
No problem, thanks for the answer.
Right now I'm working with another DSP.
Carlos
