ADAU1442 , ADAU1452 setting issue on Sigmastudio
Hello,
My customer ask ADAU1442 , ADAU1452 setting issue on Sigmastudio.

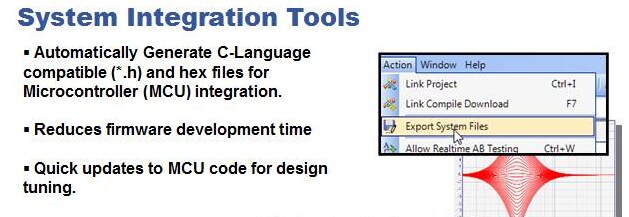

1, ADAU1452, using selfboot mode, I advise engineer as below step to export files from DSP.
Now customer export hex and bin document, but hex document is empty, bin has data, want to konw if met some issue or how correctly to export boot document.
2, Customer using ADAU1442, need three groups TDM8 Signal, now two groups signal is ok, but no the third group signal, want to konw if ADAU1442 support three groups TDM8 signal or how to setting?
Looking forward your reply, thanks!
Audio Signal Processors
adau1452
adau1452 setting issue on sigmastudio
adau1442
SigmaDSP Audio Processors
Hello Heron,
The 1452 is a little different in that it has the master and slave communications port. So if they are looking for the hex file to program an EEPROM for production then add an EEPROM to the project and recompile. Then you will find the hex file in IC2 folders. (I assume the EEPROM would become IC2 when you insert it into the project. If you have more ICs then look for the number assigned to the EEPROM.)
For your question 2, I need to see the project. This part automatically assigns port numbers based on usage so I have to see what is going on so I can then advise.
Dave T
Dear,
Very thanks your reply!
For question 2 - ADAU1442 example, the project in attaches for you reference, thanks again!
Hello heron,
Sorry for the delay. Part of the reason I have been busy is that I traveled to China for over a week! It was a good trip to Shenzhen.
So how is this project going? Do they still have a problem with the 1442 serial ports and TDM8. In addition to the SigmaStudio project I have to see the schematic to see which serial ports are being used and then I need to know what format all the serial ports are?
Thanks,
Dave T
