Question about H/W accelerators

Hello,

Often gain changes cause audible artifacts. Sudden gain changes cause "pops" and clicks. Gain changes from turning a knob can cause "zipper noise." Slewing minimizes or prevents these undesirable effect. Thus, use slewing whenever a parameter changes while "live" (sound is being reproduced).

The wiki only lists the older slew blocks for DSPs earlier than the ADAU145x. An EZ resource on the new slew blocks:

Sigma 300 (ADAU145x) Slew Volume Rates

Best regards,

Bob

Hello Bob,

Thank you for the very quick reply.

I appreciate that.

I understand the impotance of slew to remove various kinds of noise.

But, I still do not understand the usage of gain blocks.

Question1

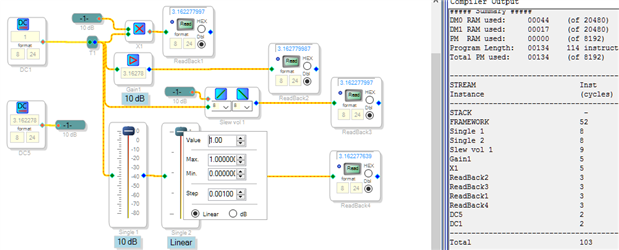

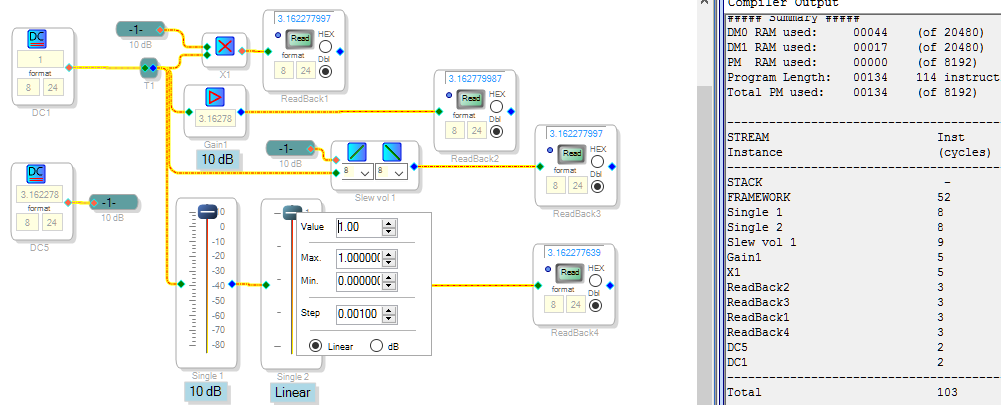

There are 2 adjustable gain folders.

->one is in Basic DSP folder on Tree ToolBox. (seems this one has only Linear gain)

->The other is in Volume Controls. (seems this one has gains that has only exponential curve.)

what are the differences?

Question2

Each Adjustable gain flolder has Clickless HW Slew and SW Slew.

What are the differences?

The Linear Gain block works exactly the same as multiplying by a DC source.

The Slew External Volume block also works as a linear gain. Its only difference is the slewing which occurs should the control input change.

The GUI volume control defaults to dB, but you can adjust its range and change it to linear by right-clicking on its slider knob. SigmaStudio figures the linear gain from the GUI setting, then loads the DSP parameter memory with it. The HW and SW slew versions work similarly, but use a slightly different number of instructions (the HW slew version uses the HW slew accelerator you mentioned above).

Hi Bob,

Sorry to be late to get back to you and thank you so much for the very clear answer.

I am understanding this gradually but surely.

I have further questions on this.

Q1

You explained that only HW slew blocks utilize HW accelerator which sound much more efficient.

Why do we need SW slew block then? For what purpose?(Is it for Sigma200 or other legacies that do not have HW accelerator?)

Q2

Why does HW slew block requires heavier resources?

I've checked the MIPS and required memory size on SigmaStudio in below 2 patterns.

1. SW slew

2. HW slew

HW slew module was heavier even though it uses accelerator.

Q3

In "Volume Controls" => "Adjustable Gain" => "Clickless SW Slew",

There are "RC optimized" and "RC Accurate".

What are the differences?

hoping these would be the very last questions for you Bob-San!

Best Regards,

Yuta Mihara

Hello,

Good questions! I'm afraid these are beyond my experience with the ADAU1452. Perhaps one of the ADI application engineers will see this thread and answer for you.

Q1: Yes, earlier SIgmaDSPs only had SW slew. HW slew is new with the -1452.

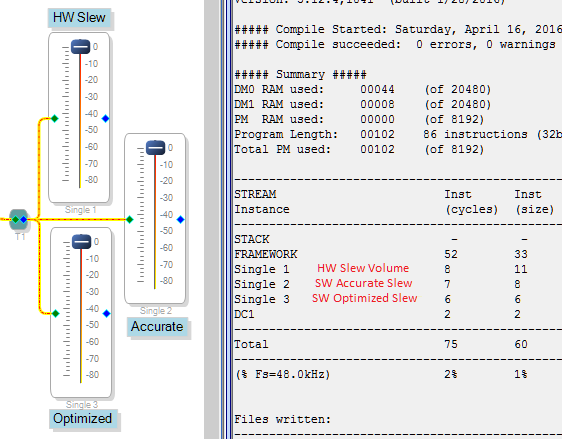

Q2: This does appear strange, the SW slew uses fewer instructions than either of the HW slews. Also there's two kinds of instructions listed, cycles and size -- this is another -1452 aspect I'm not familiar with. I assume that cycles refers to core usage while size is memory space:

Q3: At least the Optimized version uses fewer instructions than the Accurate one. When two similar algorithms are offered, often this allows a choice between more instructions and better accuracy.

Best regards,

Bob
