NxM mixer error on Sigmastudio 3.12
Hello,
My sigmastudio version is 3.12-beta. Target is ADAU1452.

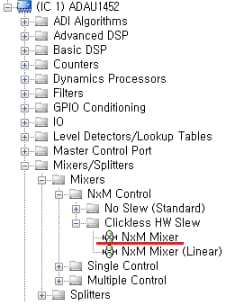

NxM Mixer(Clickless HW Slew) module invokes errors as follows:
Is it a bug of Sigmastudio?
#### Compile Started: Friday, July 03, 2015 11:37:19 AM #####
error (810,NxM Mixer1): The name 'target_0_16' in memory 'DM0' is undefined in module NxNMixerSlewS300Alg1 (3191)
error (811,NxM Mixer1): The name 'gain_0_16' in memory 'DM0' is undefined in module NxNMixerSlewS300Alg1 (3192)
error (863,NxM Mixer1): The name 'target_15_16' in memory 'DM0' is undefined in module NxNMixerSlewS300Alg1 (3244)
error (864,NxM Mixer1): The name 'gain_15_16' in memory 'DM0' is undefined in module NxNMixerSlewS300Alg1 (3245)
##### Compile FAILED: 4 errors, 0 warnings #####
Best Regards,
Mack
Audio Signal Processors
adau1452
SigmaDSP Audio Processors
It was resolved by using two 16 x 8 mixers instead of single clickless HW slew 16 x 16 mixer.
Clickless HW slew NxM module is not likely to support 16 x 16 configuration.
Best Regards,
Mack
This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
Thank you,
EZ Admin
