Fatal Error: Unconnected pins - can't find Terminal block

SigmaDSP & SigmaStudio klangmeister Jun 11, 2015 00:00 2 replies Original on forum ↗

klangmeister Question

Jun 11, 2015 00:00

Hi all,

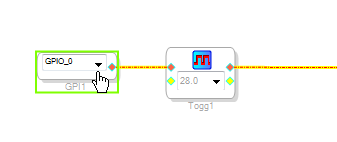

This discussion Why there is no "Schematic Terminal"in SS4S2.1.0 version? suggests there is no need for a Schematic Terminal block any more (at least for Sharc?). I'm trying something like this

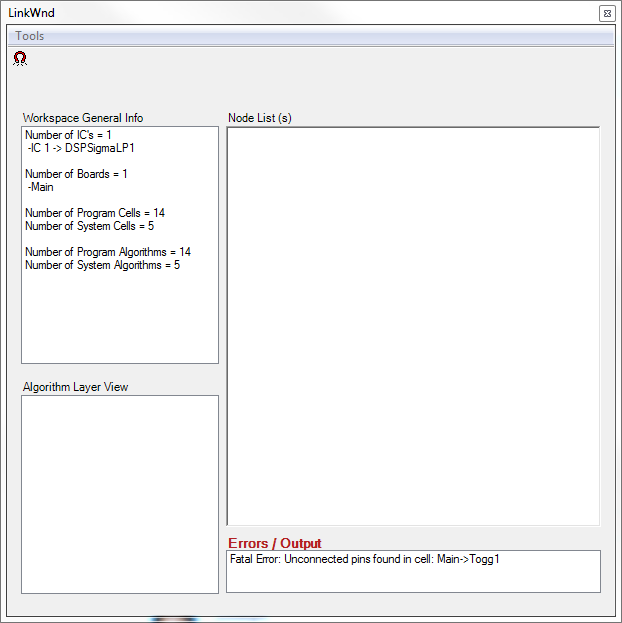

on an ADAU 1761 and I get an error message during compilation:

I just can't find any Terminal block in my SigmaStudio 3.11. What am I missing?

Best regards, Roman





Report

ADIApproved Reply

Jun 11, 2015 00:00

HI Roman:

Is it possible that you have a block that is overlapping another one (hiding behind it). This problem is caused when input to algorithms are not connected. You shouldn't need to terminate outputs anymore.

Please comment.

Miguel

Report

klangmeister Reply

Jun 11, 2015 00:00

Hi Miguel,

wow, the input was missing - thanks!

I must still be missing something though. My toggle doesn't toggle ;-)

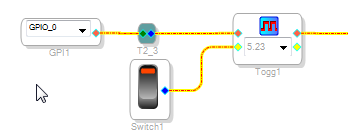

I put a "1" on the second input (this should set the initial condition), but the GPIO still acts like a pushbutton, not a toggle.

I'll be playing around with that to get it to work. Any pointers are very welcome, though!

Thanks!

Roman
