I2S audio input, DAC output

Hello Javier,

You are correct. The ADAU1701 has integrated ADCs and DACS but also a full bi-directional I2S/TDM interface. Through SigmaStudio it is easy to route ADC data out to I2S TX outputs, as well as read I2S RX data to any of the DACs.

The input/output cell descriptions up on the Wiki page should help explain things a bit on how to route the audio. Refer to the ADAU1701 tables.

Input [Analog Devices Wiki]

Output [Analog Devices Wiki]

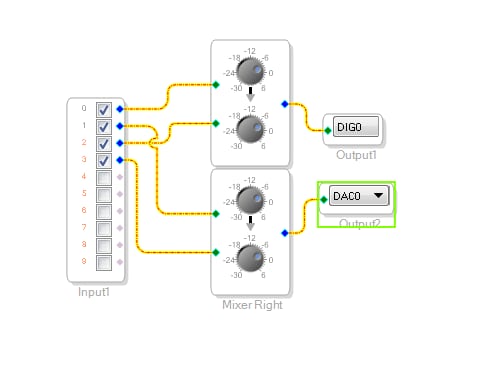

Here is an example of reading and writing ADC/DAC and I2S input/output data using Sigmastudio graphical signal flow.

For future reference, you can post ADAU1701 and SigmaStudio questions here: SigmaDSP Processors and SigmaStudio Development Tool

-JT
