adau1701 on LED

Hi lai,

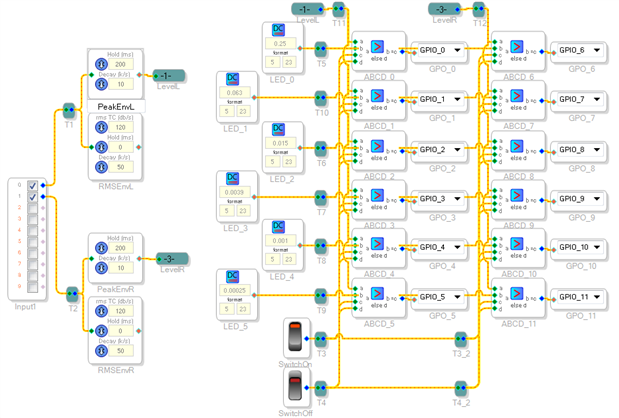

I am not sure if this will help, but I have attached an example ADAU1701 project which uses GPIO6 to GPIO11 pins as a volume meter, based on the envelope peak block on the inputs. Also attached is a much simpler project which blinks an LED based on a square wave. Both examples should show the usage of teh GPIO cells and register settings.

-JT

hi john:

Thanks for your reply. but i open the exmple with adau1701_led_levelmeter , the demo board havenot LED

to flash via MP10 . I donot know why.

Hi Lai

At some point we develop a library that would talk to SPI LED drivers. Let us know if this is what you are looking for. It used to work with an Alegro part.

Regards

Miguel

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.

Thank you,
EZ Admin
