Single-precision graphical EQ
Thread Summary
The user inquired about obtaining a single-precision version of the 'Parametric EQ' block, which is currently only available in double precision. The final answer indicated that the question was considered resolved, suggesting no direct solution. An accompanying answer proposed using single-precision filters from the standard library with a 'Stimulus' block before and a 'Probe' block after to visualize the frequency response, though this is not an ideal workaround.AI Generated Content
Is there a way to get the graphical "Parametric EQ" block in single-precision? The "General 2nd Order Index-Selectable" graphical block can be double or single precision, and works the same way, but the "Parametric EQ" block can only be double?
Audio Signal Processors
adau1702
SigmaDSP Audio Processors
parametric
Hi J3627,
I think there isn't any solution to this if it's not implemented in the library. However, there's a kind of "workaround".

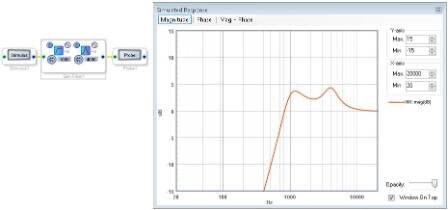

You can use single-precision filters from the standard library and then place a "Stimulus" block prior to them and a "Probe" block after them.
It's not the ideal solution, but at least it lets you see the frequency response.
This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
Thank you,
EZ Admin
