[Bug Report] 1452 Ext Volume block doesn't save its settings

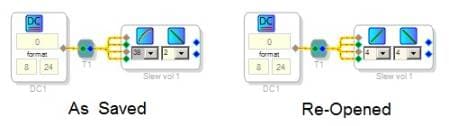

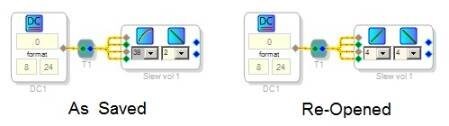

The HW Slew Ext Volume Control for the Sigma300 chips (ADAU1452, etc.) includes versatile slew settings that unfortunately, aren't saved with the project. The simple project attached demonstrates this: Open the project, change the slew settings on the block, then save it. Upon re-opening, only the default settings appear.
Bob
ext_volume
parameters
adau145x
slew
Issue confirmed, none of the block settings are saved.
Thank you for verifying this issue. There's other ways to achieve a sweet dynamic characteristic, but each uses more instructions than the slew volume. Thus I'm hoping that this bug as well as the one described at
https://ez.analog.com/thread/41917 will get fixed in a future beta or release.
BTW -- have you noticed that it's not easy to guesstimate the number of instructions a -1452 project uses? I had a good feeling for block usage in the -1701, but the only way I've found for the -1452 is to build a test project and see how it compiles.
Bob
This issue has just been fixed in SigmaStudio 11.1 Beta, available from the usual download page.
