Read EEPROM from EvalBoard 1701!...

Hello,

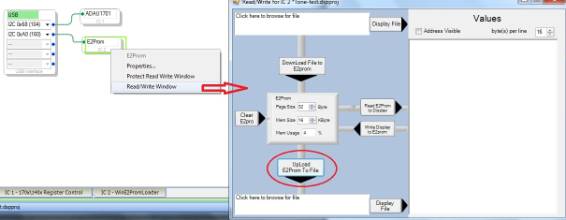

SigmaStudio includes the E2Prom Read/Write Window shown below. It appears from posts such as https://ez.analog.com/message/19512#19512, however, that it hasn't worked recently. When I tried it today, I could not get it to save anything to a file.

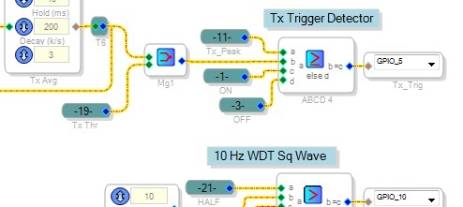

Even if you could access the E2Prom contents (perhaps using another utility), it wouldn't help much because no decompiler is available to translate the object code back into a project file -- see https://ez.analog.com/message/19512#19512. In addition to the issue of software security, a decompiler won't work very well anyhow. Shown below is a snippet of a huge project that nearly fills up a ADAU1701. As a project it uses 200K of disc space, but compiles down to fit into a 8K E2Prom. As a result, a decompiler would not reconstruct the original project. As a minimum, the use of aliases with recognizable labels would be lost.

Actually I did lose this project at one point in its development. Surprisingly, it only took about a day to re-enter it from scratch, and in the process I turned it from a scatter-wired mess into something far neater and more maintainable -- see https://ez.analog.com/message/63999#639994

Thus I found a silver lining in this misfortune. It also taught me to save multiple copies of each project revision.

Best regards,

Bob

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.

Thank you,
EZ Admin
