About compile error for LUT module in ADAU1452
Dear support team,
I watch a error for LUT module in ADAU1452.
Error is:
error (7,Lookup Table1): offset value "137" out of range [-127, 127] in module LookupTableAlg300NoLP1 (3151,0)
Could you tell me detail of the error,please?
I can't fond a issue of the error in schematic.
In simple schematic , the error is not happened.
But, when simple schematic and other schematic ( using some LUT) is found the error.
Best regards,
Takepiro
Audio Signal Processors
adau1452
SigmaDSP Audio Processors
This is known issue with the LUT and index-selectable MUX and Demux cells. It has been documentated and addressed, and the fix will be included in the forthcoming SigmaStudio update version 3.10.4. The LUT with "Index Limit Protection" does not have this issue and can be used as a workaround.
Dear Jmccarty-san
Thank you very much!!
Best regards,
Takepiro
Dear Jmccarty-san,
Thank you for your supports.
I checked SigmaStudio download site.
But, Latest version is 3.10.3.
Could you tell me about release schedule of 3.10.4 of Sigma Studio,please?
Best regards,
Takepiro
Hello Takepiro-san,
We have submitted v3.10.4 to our web group and it should be posted on the download page any day.
Best regards,
Coleman
Sorry, I meant to add the link to the download page:
Dear ColemanR-san,
Thank you for your reply.
I want to know the schedule of release of v3.10.4.
Now, we can download v3.10.3.
Best regards,
Takepiro
Hi Takepiro-san,

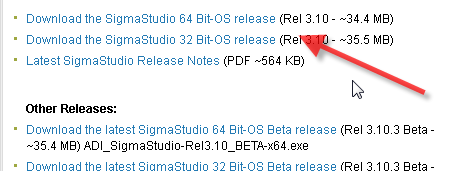

SigmaStudio "Rel 3.10" which is available on the link provided by ColmanR above is the newest version, and the full version number of this build is 3.10.4. Sorry this is not clear on the website.
Best regards,
John
Dear John-san,
Thank you for your support and release information.
Best regards,
Takepiro
