1761 compress and limiter

Hello Meican,

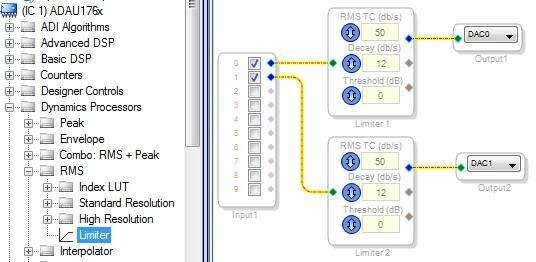

The ADAU1761 provides many choices under Dynamics Processors in SigmaStudio. The easiest one to do a straight limit on level is the Limiter block shown below:

The Limiter works very well, even in applications where a strict limit is necessary for compliance with regulations such as FCC Part 68. Help with these blocks is available at

https://wiki.analog.com/resources/tools-software/sigmastudio/toolbox/dynamicsprocessors

Best regards,

Bob

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.

Thank you,
EZ Admin
