ADAU1701 Loading Procedure

Hi Ray,

Those tables are just showing examples with arbitrarily limited data length. In reality, you can write in burst for as many bytes as you wish, as long as these conditions apply:

The addresses are contiguous and incremental

The word lengths for each address are constant

This means you can write the entire program RAM in one burst write, and then write the parameter RAM in one burst write.

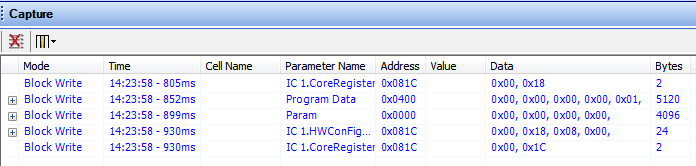

In fact, this is how SigmaStudio downloads data to the ADAU1701 when you press Link-Compile-Download. You can see this in the capture window:

As you can see, the entire download consists of only 5 burst writes. The first and last writes are just a single address, but the 3 writes in the middle show the Program RAM, Parameter RAM, and Control Registers being written using a single burst write for each.

Brett,

Thanks for the quick response. I just wanted to confirm that my process was correct before digging into the error that I am getting. I can run my micro in debug and get the correct data from a couple of (confirmation) register reads, but when I run full speed ‘release’ code I get bad data returned. I suspect that I may need to put in some more delay (after programming) for DSP initialization before reading the registers.

Ray

Ray Donnelly

A/V Engineering Consultant

13602 N 19th PL

Phoenix, AZ 85022

PH: 480-626-1924

<mailto:ray.donnelly@cox.net> mailto:ray.donnelly@cox.net

This email may contain confidential and/or privileged

information. It is intended only for the person or persons to

whom it is addressed. Any unauthorized review, use, or

distribution is prohibited. If you are not the intended

recipient, please contact the sender by reply email or

telephone and destroy all copies of the original message.

Hi Ray,

I would wait at least a full audio sample, on the order of 20 microseconds, before trying to read back. This will let the DSP core step through its entire program before you attempt a read request.
