TCount problem

SigmaDSP & SigmaStudio piero Jan 19, 2013 00:00 2 replies Original on forum ↗
Subscribe
piero Question
Jan 19, 2013 00:00

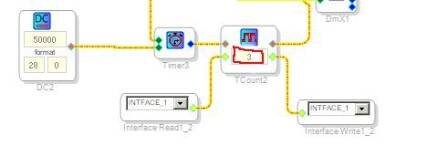

Do I have need to have a Tcount = 2 Sigma returns an error, how come?

Thanks

Report
piero Reply
Jan 21, 2013 00:00

Thanks Brett,

I had found the solution from you suitable.

Report
ADIApproved Reply
Jan 21, 2013 00:00

Piero,

For a toggle count of 2, just use the Toggle OnOff cell.

https://wiki.analog.com/resources/tools-software/sigmastudio/toolbox/gpioconditioning/toggleonoff
