does ADAU1781 support two equalizers?
The ADAU1781 supports two audio inputs and has two audio outputs, with an equalizer in the middle. Can the equalizer be different for the two channels?
Audio Signal Processors
adau1781
SigmaDSP Audio Processors
evaluation_board
Yes. It's important to note that the ADAU1781 doesn't just do equalization. It is fully programmable in our SigmaStudio drag-and-drop graphical programming software. It supports about 400 audio processing algorithms (including various varieties of EQ) that can be placed anywhere in the signal processing chain, independently for each audio channel.
You can find a list of algorithms supported on the ADAU1781 on each of these sub-pages:
ADI Algorithms Resource Table
Advanced DSP Resource Table
Basic DSP Resource Table
Counters Resource Table
Dynamics Processors Resource Table
Filters Resource Table
GPIO Conditioning Resource Table
IO Resource Table
Level Detectors/Lookup Tables Resource Table
Mixers/Splitters Resource Table
Muxes/Demuxes Resource Table
Non-Linear Processors Resource Table
Sources Resource Table
Volume Controls Resource Table
There is documentation for these algorithms available on these pages (currently under construction):
System
ADI Algorithms
Advanced DSP
Basic DSP
Counters
Dynamics Processors
Filters
GPIO Conditioning
Input / Output
Level Detectors / Lookup Tables
Licensed Algorithms
Mixers / Splitters
Multiplexers / Demultiplexers
Non-Linear Processes
Sources
Volume Controls

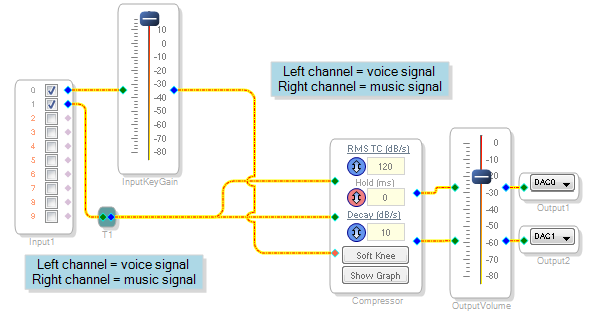

SigmaStudio lets you use these blocks to build up a signal processing flow to fit your needs. Here's an example of using level controls to create a broadcast ducking appliction:
