Re: Comb filter implementation.

SigmaDSP & SigmaStudio rmsnyder Apr 27, 2012 00:00 5 replies Original on forum ↗
Subscribe
rmsnyder Question
Apr 27, 2012 00:00

Brett,

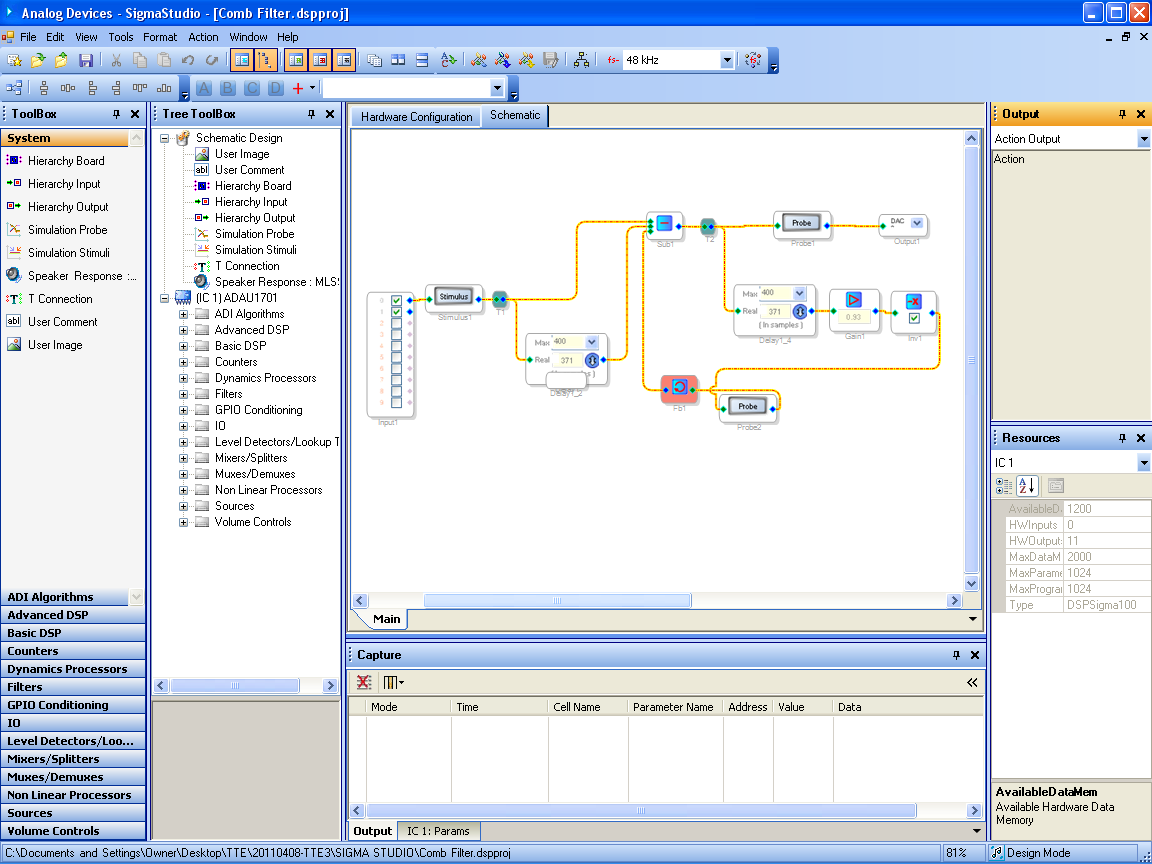

Thanks for the help. See below. I implemented my filter, but the results do not agree with the Matlab model.

Edit (looks like you have to double click my image to see the whole implementation)

Best regards,

Bob

Message was edited by: Robert Snyder Added the Matlab simulation tonight.

Report
ADIApproved Reply
Apr 30, 2012 00:00

Would you mind attaching the project file so I can take a look at the response?

Report
rmsnyder Reply
May 1, 2012 00:00

Brett,

I've attached my Sigma file

Report
rmsnyder Reply
May 3, 2012 00:00

Brett,

Have you had an opportunity to take a look at my filter implementation?

Best regards,

Bob

Report
ADIApproved Reply
May 8, 2012 00:00

Bob, perhaps this is a problem with the probe/stimulus calculation. Have you tried this out with an actual audio test setup?

Report
rmsnyder Reply
May 9, 2012 00:00

Brett,

Thanks for the reply. I'll give that that a try.

Bob
