About ADAU1701 how to switch of three different EQ
Hello， everyone
At least，I want to use ADAU1701 do three different EQ, a kind of EQ I know how to deal with and calls, but three different EQ should how to switch？
Thank you.
Audio Signal Processors
SigmaDSP Audio Processors
adau1701
Do you want to change the EQ using the control port (I2C/SPI) or by using GPIO?
If you want to use the control port, then you'll need to calculate the filter coefficients and download them to the proper registers. There are several ways to do this. Here are some documents and videos that might help.
https://ez.analog.com/message/2799#2799
https://ez.analog.com/docs/DOC-1819
http://videos.analog.com/video/756712926001/SigmaStudio-C2-Capture-Window/
http://videos.analog.com/video/756712925001/SigmaStudio-C3-Parameters-Window/

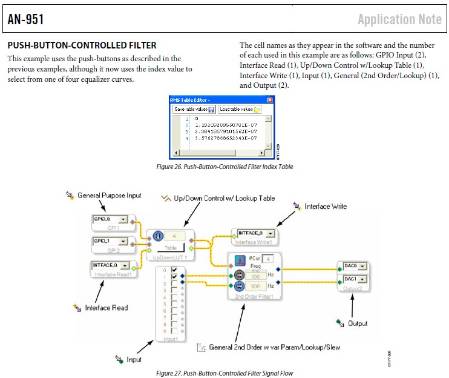

If you want to use GPIO, please check out AN-951, which shows how to use GPIO to accomplish various tasks on SigmaDSP. The example with a pushbutton-controlled filter would fit your application.
https://www.analog.com/static/imported-files/application_notes/AN-951.pdf
This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.
Thank you,
EZ Admin
