USBi not working with USB 1.0 connection

SigmaDSP & SigmaStudio TizMor Jul 27, 2011 00:00 2 replies Original on forum ↗
Subscribe
TizMor Question
Jul 27, 2011 00:00

Hi,

I recently had a problem while trying to use my USBi interface on an old notebook which is equipped by USB 1.0 interface only (12Mbit).

Registers and single values are correctly read and written, but when I try to donwload the whole program + data ram (several kByte block) the operation fails. The yellow led on USBi continue to blink fast and it never stops blinking. After a while SigmaStudio shows the link communication error message.

Has someone tried this?

Is there any timeout / tweaking setting on sigmastudio? On USBi driver?

Regards

T

ADIApproved Reply
Aug 4, 2011 00:00

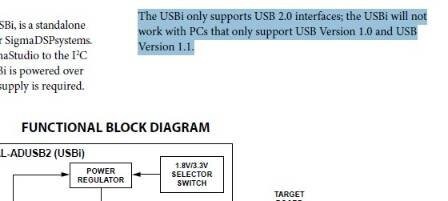

Please see AN-1006. The USBi uses a Cypress interface IC that only supports USB 2.0.

EZAdministrator Reply
Aug 2, 2018 00:00

This question has been assumed as answered either offline via email or with a multi-part answer. This question has now been closed out. If you have an inquiry related to this topic please post a new question in the applicable product forum.

Thank you,
EZ Admin
